Lab-Guide.md

Introduction

Documentation Link for Cisco SD-WAN APIs

https://sdwan-docs.cisco.com/Product_Documentation/Command_Reference/vManage_REST_APIs

API-Library

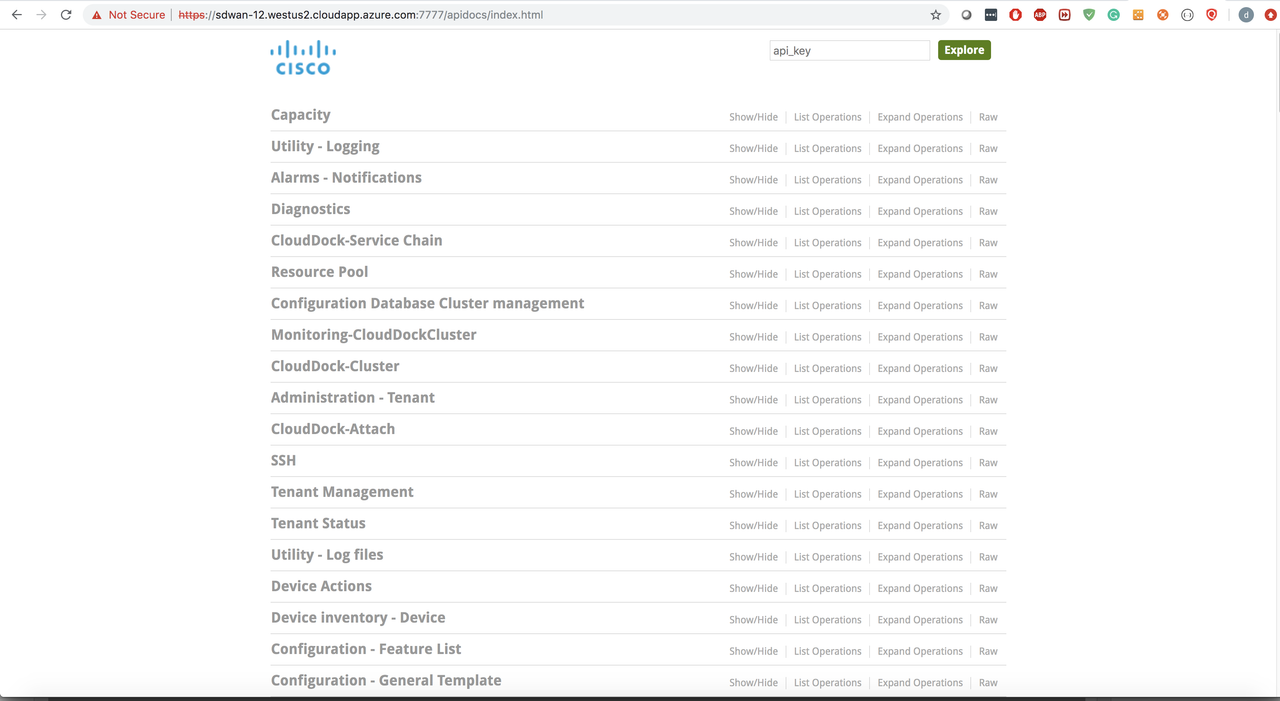

• The API library for the vManage can be accesssed at https://{{vmanage-ip}}/apidocs

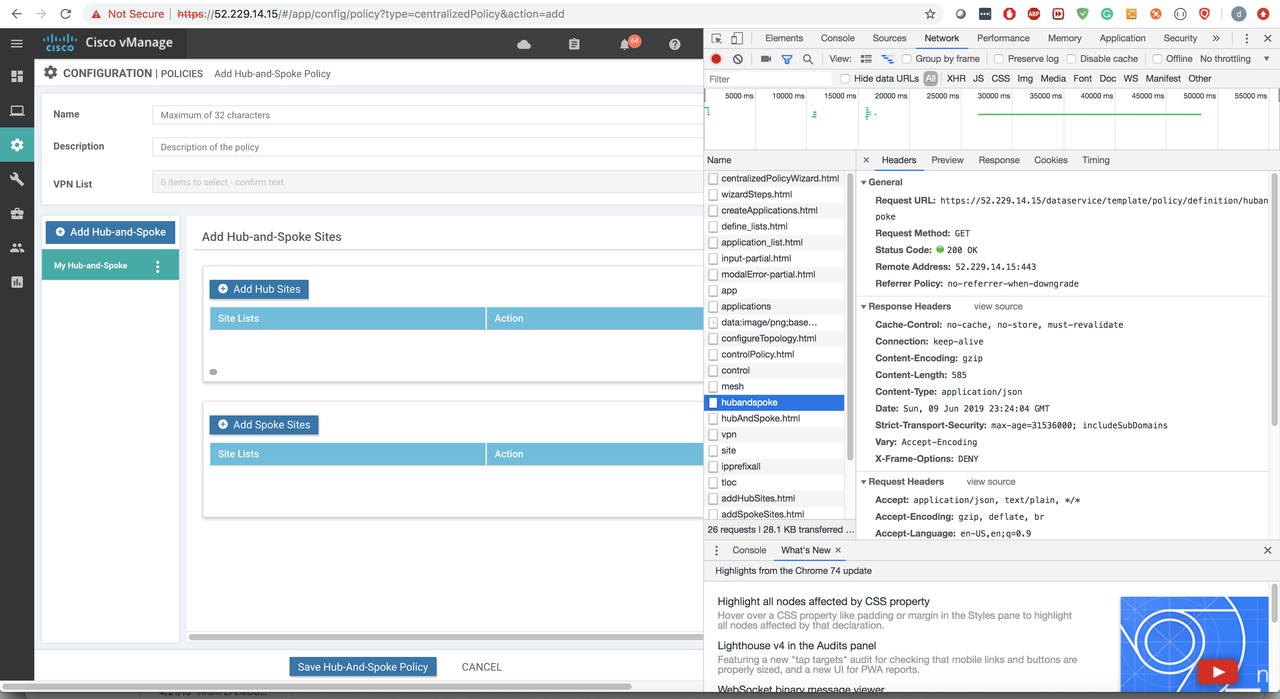

Chrome Developer Tools

Use Case-1 - Device Auditing

Run python script to get serial and chassis numbers of devices which are part of the SD-WAN overlay.

• API Used - https://{{vmanage-ip}}/dataservice/system/device/management/systemip
• METHOD - GET

Use Case-2 - vSmart Policy Push

Run python script to push centralized policy on the vSmart controller.

• API Used - https://{{vmanage-ip}}/dataservice/template/policy/vsmart
• METHOD - POST

Use Case-3 - Device Template Push

Run python script to push configuration on the WAN Edge Device.

• API Used - https://{{vmanage-ip}}/dataservice/template/device/config/attachcli
• METHOD - POST

Use Case-4 - Device Monitoring

Leverage Third party tools to look at integrations for monitoring SD-WAN devices.

• Tools Used - LiveAction, SevOne
• APIs Used - https://{{vmanage-ip}}/dataservice/data/device/state/Interface -- https://{{vmanage-ip}}/dataservice/data/device/state/BFDSessions
• METHOD - GET
