Discrepancy between simulator and Radiomaster zorro

[SadE54]

Is there an existing issue for this problem?

• I have searched the existing issues

What part of EdgeTX is the focus of this bug?

Transmitter firmware

Current Behavior

Hi ,

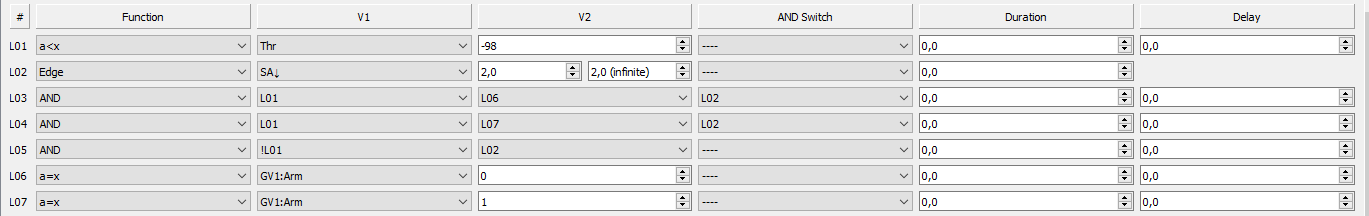

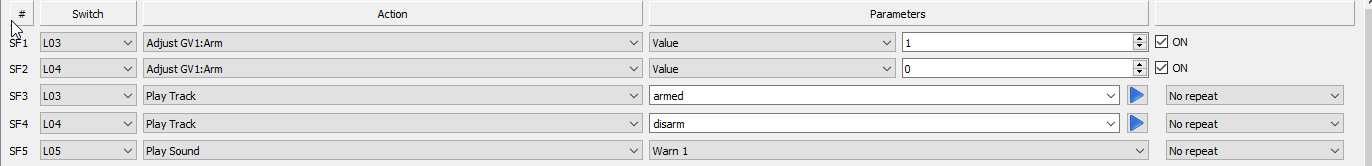

I set up a throttle arming system using a gloval var , logical switches , and specials functions



s

It's working well on the simulator , and behaves accordingly logical switch states. But on the zorro if it's arming , the 'armed' track is played, then just after the 'disarmed' is played too. And in the oyer way it's the same ('armed' is played' just after 'disarmed'

Expected Behavior

The output behavior is correct , the only problem is a second second file is played only on the radio , not the simulator.

Steps To Reproduce

1. Thr is set to low
2. Press for 2 seconds on SA and release

Version

2.7.0

Transmitter

Radiomaster Zorro

Anything else?

No response

[SadE54]

Someone told me to put a 0.1s delay on L06 and L07 and it's working well now.
I guess it could be related to switch bounces on the Zorro ? There's no input filtering at lower level ?

[raphaelcoeffic]

There's no input filtering at lower level ?

At hardware level: simple RC filter, as usual. No special filter, just software polling, indeed.

[SadE54]

Maybe it could be a good idea to software debounce to avoid false triggering? I don't know the polling time, but just validate level when 2 following read values are the same should be enough
