Cannot get the correct RBC distribution in pipeflow

[mojtabaAmiraslanpour]

Hello,

I am simulating the pipeflow case with the following configuration:

D = 32
Re = 0.5
plt_ratio = 0.1
H = 0.35

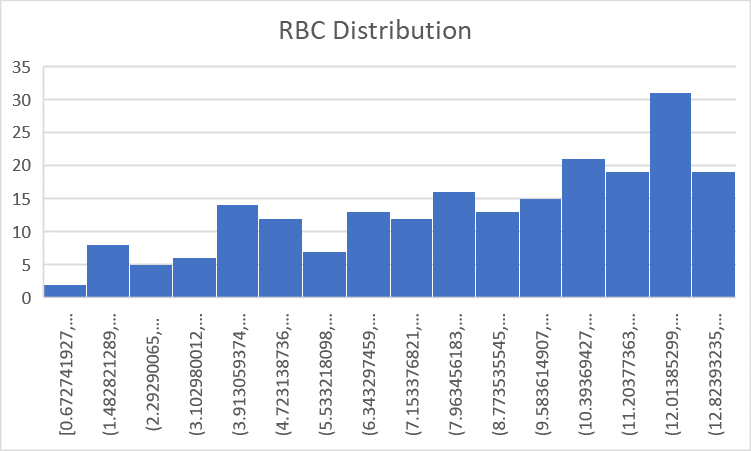

I see PLT margination happening in my case and it makes me happy but I cannot see the correct distribution of RBCs radial-wise. I expect to see the maximum number of red blood cells to be placed in the center of the pipe, but it doesn't happen. I get something like this when I draw the histogram for RBC locations after 1s of simulation time:

The horizontal direction is R which is the distance of the RBC from the center of the pipe.

No idea why it doesn't happen. Any help would be appreciated, guys!

Thanks

[gzavo]

Maybe you don't normalize with the volume? It grows as r^2.

[mojtabaAmiraslanpour]

That was correct. I got the correct histogram after normalizing with the volume, Thanks!
