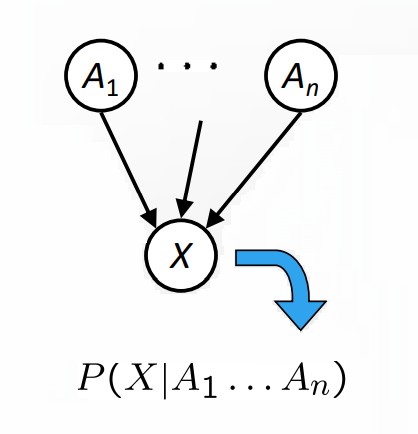

+ $$P(x_1, x_2,... , x_n)=\prod_{i=1}^{n}P(x_i|Parents(x_i))$$
+ In the following part, we will prove this method is correct.
+ First note the chain rule applied to each distribution:
+ $$P(x_1, x_2,... , x_n)=\prod_{i=1}^{n}P(x_i|x_1,x_2,...,x_{i-1})$$
+ Now with respect to conditional independence, we can claim that:
+ $$P(x_i|x_1,x_2,...,x_{i-1})= P(x_i|Parents(X_i))$$
+ Which is true because xi is conditionally independent of other nodes, given its parents. In other words, by knowing the values of all the parents, the other nodes no longer give us new information, and it does not matter to us whether we know them or not.
+ So, we can conclude that:
+ $$P(x_1, x_2,... , x_n)=\prod_{i=1}^{n}P(x_i|Parents(x_i))$$
+ Note that not every BN can produce every distribution, but the BN topology determines what conditional independence can be produced.
+ + See the following examples of BN distribution.
+ + a. coin flips
+ In this case, a coin is tossed n times, the probability of a head or tail being equal in each toss. If these actions are independent of each other, then the graph is as shown in the image. +![coin](assets/coin.png)
+ For example $P(H, T, T, H) = P(H)P(T)P(T)P(H)$
+ Note that only distributions whose variables are absolutely independent can be represented by a Bayes’ net with no arcs.
+ + b. traffic
+ In this example, R stands for rain and T stands for traffic. It is also assumed that rain causes traffic. +![traffic](assets/traffic.png)
+ For example $P(+r, -t) = P(+r)P(-t|+r)$
+ + c. alarm network
+ In this case, it is assumed that the house alarm goes off by an earthquake or burglary. John and Mary may also call us if the alarm is ringing. + ![alarm](assets/alarm.png)
+For example $P(+b,-e,+a,-j,-m)=P(+b)P(-e)P(+a|+b,-e)P(-j|+a)P(-m|+a)$ + +### Causality in Bayes' Nets + If in a Bayes' net the arrows represent the real causes, it can be better investigated and the probabilities are easier to find. The network also becomes simpler. Because the number of parents is fewer.
+ Sometimes arrows do not represent causal relationships. Or even in some networks, none of the arrows have a causal relationship. For example, when some important variables are not available in the network. In such cases, the arrows show correlation and not causation.
+ + Therefore, we do not need to know the exact causal structure between the variables. +### Space Efficiency + The CPT size of a node depends on it's domain and parents. if a node has $k$ parents and each of which has $m$ different value, the CPT size is equal to $m^{k+1}$.
+ Therefore, in a Bayes' net with $N$ Boolean variables, if each node has a maximum of $k$ parents, the size of the whole net is of the order of $O(N\times 2^{k+1})$. Whereas if we want to store their joint distribution, it is the size of $2^N$.
+ + So, we conclude that if we use this method, it usually requires less memory. It is also easier and faster to use local CPTs. + +## Independence in Bayes' Nets + +### D-separation + +In previous sections we used conditional dependencies. But in a big graph, finding dependencies with algebraic methods is so difficult and complex. In this section we present an algorithm called D-separation to find different conditional dependencies. + +#### Outline: + +In this method, first we check conditional dependency for ***triples*** (3 nodes that are connected) and specify several rules to find whether the last and first variables are dependent or not. Then we use these rules to find conditional dependencies in general cases on bigger graph. In another words, in big graphs we do some processing on each triple in the path between the two desired nodes to find if they are independent.
+In the following section, we will examine three different situations for triples: + +#### Causal Chain + +The first configuration is “casual chain”.
+ +In this configuration, middle node transmits the effect of the previous node to the next one. + +Example: + +![causal_ex](assets/ch1.png) +- $$P(X, Y, Z) = P(X) P(Y|X) P(Z|Y)$$
+ +In this BN, low pressure causes rain and rain causes traffic. in another word rain transmits the effect of low pressure to traffic.
+ +is $X$ is guaranteed to be independent of $Z$?
+ +the answer is NO. To prove this claim, it is enough to give an example that $X$ and $Z$ are dependent. suppose that $X$ is random, and probability of low pressure $(P(+x))$ and high pressure $(P(-x))$ are equal to 0.5. $P(+x)=P(-x)=0.5$
+ +rainfall is completely dependent on low pressure and if low pressure occurs, rainfall is definite. and if high pressure occurs, rainfall is impossible.
+$$P(+y|-x)=0 , P(+y|+x)=1$$
+ +Also, traffic is completely dependent on rainfall. if it rains, traffic will occur and otherwise there isn’t any traffic.
+ +$$P(+z|+x)=1 , P(-z|-x)=1$$
+ +now we should compare $P(Z)$ and $P(Z|X)$ to find dependency. for example low pressure and traffic occurred. $(X=+x and Z=+z)$ we know $P(+z|+x)=1$ but $P(+z)=0.5$
+ +As a result, the two variables are not independent.
+ +is $X$ is guaranteed to be independent of $Z$ given $Y$?
+ +the answer is YES. to prove this claim, we use algebraic operations. we should show equality of $P(Z|Y)$ and $P(Z|Y,X)$.
+ +$$P(Z|X,Y)=\frac{P(X,Y,Z)}{P(X,Y)}=\frac{P(X)P(Y|X)P(Z|Y)}{P(X)P(Y|X)}=P(Z|Y)$$
+ +we conclude that with condition on $Y$, $X$ and $Z$ are independent.
+ +So, in triple casual case, if middle node is observed, end nodes are independent. because the effect of $X$ to $Z$ is not direct, if the value of $Y$ is known, changes in value of $X$ causes no effect on Z’ value. in other word if we know value of $Y$, value of $X$ doesn't give any additional information about $Z$.
+ +So, evidence along the chain “blocks” the influence. + +#### Common Cause + +second configuration is “common cause”:
+ +in this configuration one variable effect on another two variables. but child nodes are not related directly.
+ +Example: + +![common_cause_ex](assets/ch2.jpg) +- $$P(X, Y, Z) = P(Y) P(X|Y) P(Z|Y)$$
+ +in this BN, project due causes lab full and forums busy.
+ +is $X$ is guaranteed to be independent of $Z$?
+ +the answer is NO. it is enough to give an example set of CPTs that $X$ and $Z$ are dependent. suppose that $Y$ is random, and the probability of being close to project deadline $(P(+y))$ and otherwise $(P(-y))$ are equal to 0.5. $P(+y)=P(-y)=0.5$
+ +laboratory fullness is completely dependent on project deadline and if deadline is near, laboratory is full. and if project deadline is not near, laboratory is not full.
+$P(+z|+y)=1 , P(+z|-y)=0$
+ +Also, forums are related to project deadline. if deadline is near, forums get busy.
+$P(+x|+y)=1 , P(+x|-y)=0$
+ +now we should compare $P(Z)$ and $P(Z|X)$ to find dependency. for example, lab is full and forums are busy. $(X=+x and Z=+z)$ we know $P(+z|+x)=1$ but $P(+z)=0.5$. because value of $Z$ and $X$ are exactly equal to the value of $Y$.
+As a result, the two child variables in common cause triples are not independent in general case.
+ +is $X$ is guaranteed to be independent of $Z$ given $Y$?
+ +the answer is Yes. to prove this claim, we use algebraic operations. we should show equality of $P(Z|Y)$ and $P(Z|X,Y)$.
+ +$$P(Z|X,Y)=\frac{P(X,Y,Z)}{P(X,Y)}=\frac{P(X)P(Y|X)P(Z|Y)}{P(X)P(Y|X)}=P(Z|Y)$$
+ +we conclude that with condition on $Y$, $X$ and $Z$ are independent.
+ +So, in triple common cause, if parent node is observed, child nodes are independent. because the effect of $X$ to $Z$ is not direct, if value of $Y$ is known, changes in value of $X$ causes no effect on $Z$’ value. in other word if we know value of $Y$, value of $X$ doesn't give any additional information about $Z$.
+So, observing the cause blocks influence between effects. + +#### V-Structure + +the last configuration is "common effect" and is sometimes called V-Structure.
+ +in this configuration, one variable is affected by another two variables.
+ +Example: + +![common_effect_ex](assets/ch3.jpg) +- $$P(X, Y, Z) = P(X) P(Y) P(Z|X, Y)$$
+ +in following BN, both ballgame and raining cause traffic.
+ +is $X$ is guaranteed to be independent of $Y$?
+ +the answer, unlike previous versions, is Yes. ballgame and rain do not get effect from each other or a common cause. to prove this claim, use algebraic operation again:
+ +$$P(X,Y)=\sum_{z}^{}P(X,Y,z)=\sum_{z}^{}P(X)P(Y)P(z|X,Y)=P(X)P(Y)\sum_{z}^{}P(z|X,Y)=P(X)P(Y)$$
+ +So we show $P(X,Y) = P(X)P(Y)$ and conclude $X$ and $Y$ are independent.
+ +is $X$ is guaranteed to be independent of $Y$ given $Z$?
+ +the answer is NO. with an example we describe the situation. consider $X$ and $Y$ have random values and probability of occurrence of each one is 0.5. $(P(+x)=P(+y)=0.5)$ and traffic will occur when ballgame or raining occurs.
+ +$P(+z|+x,+y)=P(+z|+x,-y)=P(+z|-x,+y)=1 , P(+z|-x,-y)=0$
+ +From the problem description, We can conclude that $P(+x|+z,-y)=1$ and $P(+x|-y)=0.5$. So, $P(X|Z,Y)$ is not equal to $P(X|Y)$.
+ +So, with the observation of $Z$, $X$ and $Y$ are not independent. this means Observing an effect, activating influence between possible causes.
+In the same way, it can be shown that if one of $Z$ descendants is also observed, the independence of $X$ and $Y$ is no longer guaranteed. To prove this from the previous issue, it is enough to add the condition that the occurrence or non-occurrence of each of $Z$ descendants is always the same as its parent. + +### Reachability + +Now, we want to use these three cases to check conditional dependency in any arbitrary graph. generally, the problem is checking dependency between two random variables in a BN in which some (or any) variables are observed. for this goal, we break the graph into triples which we learned above, and do some checking on them. In the following, these steps are described.
+ +in the first step, we should shade evidence nodes, nodes that are observed in the problem. then looking for undirected paths between determined random variables. the first idea is that if two nodes are connected by a path that is blocked by a shaded node, two random variables are independent. But there are drawbacks to this rule. when we have several paths between two RVs or there is a V-structure triple that its bottom node is shaded, our method is wrong. So, we describe the next step to correct these problems. + +### Active/Inactive Paths + +Question: are $X$ and $Y$ conditionally independent given evidence variables $Z$?
+ +Yes, if $X$ and $Y$ “d-separated” by $Z$. + +to describe the "d-separated" concept, we first need to understand the concept of active/inactive path.
+ +a path is active if each triple of it is active. a triple is active if: + +- Causal chain $A \rightarrow B \rightarrow C$ where $B$ is unobserved (either direction) +- Common cause $A \leftarrow B \rightarrow C$ where $B$ is unobserved +- Common effect (aka v-structure) $A \rightarrow B \leftarrow C$ where $B$ or one of its descendants is observed + +Now we consider all undirected paths from $X$ to $Y$ after shading evidence variables, if none of these paths aren’t active paths, we can say $X$ and $Y$ are d-separated by $Z$.
+ +in the figure below, examples of active and inactive triples are shown. + +![dsepr](assets/ch4.jpg) + +note that a single inactive triple makes a path inactive. but two RVs are independent if all paths between related nodes are inactive. So, if some paths were active, independence is not guaranteed. + +Examples: + + a. we want to check conditionally independence between $R$ and $B$ variables with different evidence. + +![exp1](assets/ch5.jpg) + +- **without evidence:** there is only one path between $R$ and $B$ that is a “common effect” triple. it is inactive so $R$ and $B$ are independent. +- **evidence=T:** there is a “common effect” triple that is active. So, the independence of $R$ and $B$ isn’t guaranteed. +- **evidence=T’:** this situation is similar to previous evidence. + + b. we want to check conditionally independence between $L$ and $B$ variables with different evidence. + +![exp2](assets/ch6.jpg) + +- **without evidence:** there is only one path between $L$ and $B$ that has two triples. $L \rightarrow R \rightarrow T$ is active but $R \rightarrow T \leftarrow B$ is inactive. So, this pass is inactive. So, $L$ and $B$ are independent. +- **evidence = T:** similar to the previous segment there is only one path that has two triples. both are active. So, $L$ and $B$ aren't guaranteed to be independent given $T$. +- **evidence = T':** it is similar to segment. +- **evidence = T, R:** similar to the 2’nd segment the $R \rightarrow T \leftarrow B$ triple is active but $L \rightarrow R \rightarrow T$ is inactive. So, $L$ and $B$ are independent given $T$ and $R$. + + c. we want to check conditionally independence between $T$ and $D$ variables with different evidence. + +![exp3](assets/ch7.jpg) + +- **without evidence:** There are two paths between $T$ and $D$. upper path is an active “common cause” and the lower path is an inactive “common effect”. So, $L$ and $T$ aren't guaranteed to be independent. +- **evidence = R:** There are two paths between $T$ and $D$. upper path is an inactive “common cause” and the lower path is an inactive “common effect”. So, $L$ and $T$ are independent given $R$. +- **evidence = R, S:** There are two paths between $T$ and $D$. upper path is an inactive “common cause” and the lower path is an active “common effect”. So, $L$ and $T$ aren't guaranteed to be independent. + +### Structure Implications + + As you can see, With the help of this algorithm, sometimes it is possible to check the conditional independence of two random variables more easily. So, if we test the algorithm on all models, we get a list of conditional independence. but sometimes this list isn’t complete. because when we check conditional dependencies, some cases aren’t certain, and using this method alone, their independence cannot be recognized.
+but in some cases, “d-separation” algorithm can find all dependencies. For example, in the figure below; + +![stIm](assets/sim.jpg) + +### Topology Limits Distributions + +In a given graph topology, only certain joint distributions can be encoded. The graph structure guarantees certain (conditional) independence (There might be more independence). As the number of arcs increases, the probability that there is at least one active path between the two variables increases. Thus the independence of the variables decreases.
+For example, in the figure below, different kind of dependence for triples is mentioned. + +![TLD](assets/tld.jpg) + +- Green color: triples in which every pair of RVs are independent. +- Red color: triples in which two RVs are independent given the 3rd one. +- Blue color: triples in which no independence is found. + +## Conclusion + +Through this lecture note, we saw that: + +- Joint distributions can be encoded efficiently using bayes' nets which simplifies calculations a lot compared to the classic joint distribution tables method. + +- Guaranteed independencies of distributions can be deducted from the bayesian net graph structure which weren't apparent at first. Moreover, using d-separation gives us precise conditional independence guarantees from the graph alone. + +- Even that isn't all. There may as well be more (conditional) independencies that are not detectable until we inspect the specific distributions. + +### What comes next + +Up until now, we saw how to build a bayes' net and how to find the independencies. The next step is to put these bayes' nets to use and infer probabilities from it. It's basically done by multiplying probabilities taken from every node on the path from top to the desired node. Read the next lecture note to learn all the details. + +## References + +
+
+
+
