Node based graph toolkit for Unity 6. Enhanced fork of Siccity/xNode with additional editor features and stability improvements.
- Runtime Performance: Minimal footprint, cached reflection for editor operations only
- Zero Dependencies: No external libraries required
- Unity Integration: Compatible with Unity 2018.1+ through Unity 6
- Assembly Definitions: Full support included
- Editor Tools: Custom inspectors, visual debugging, preference management

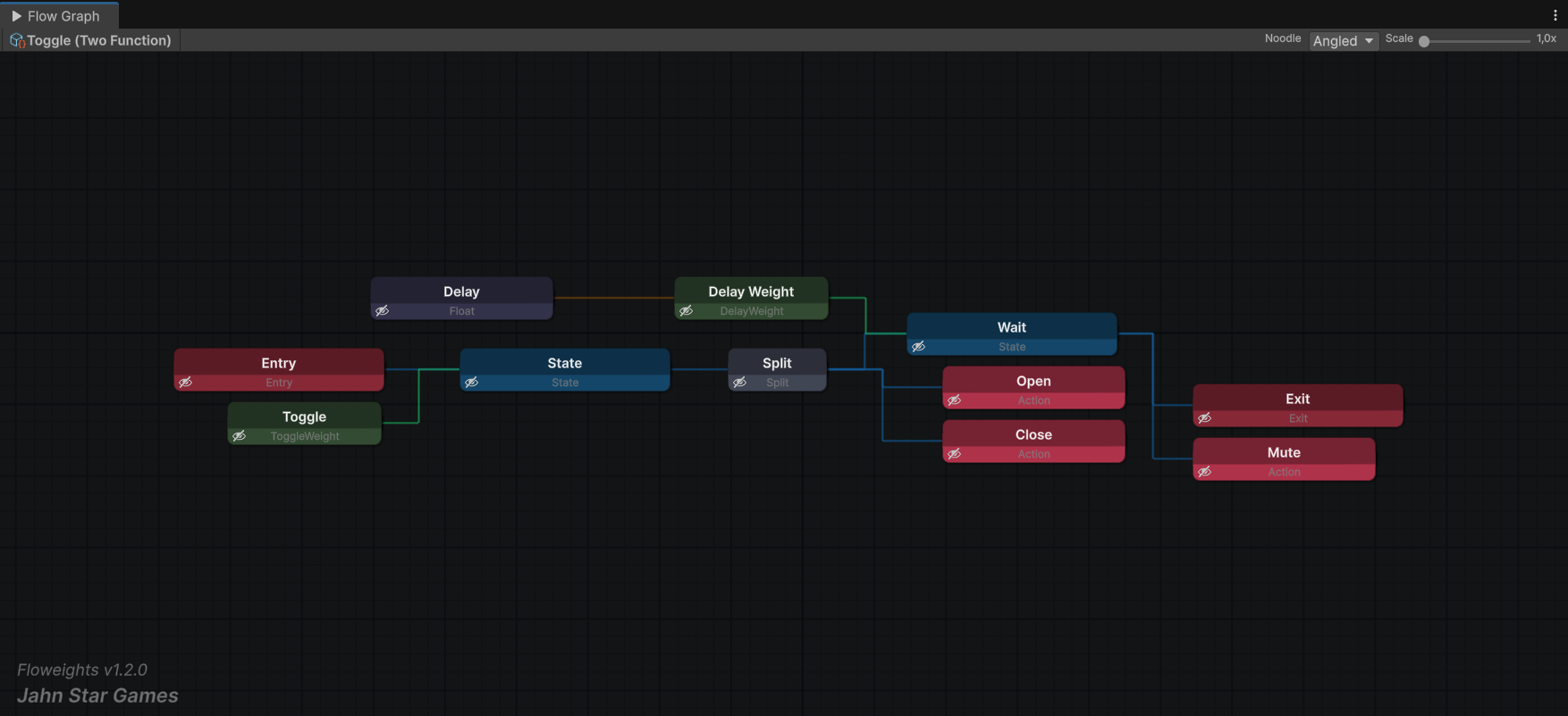

- Node Minimization: Toggle node body visibility with eye icon in bottom-left corner for significant performance improvements
- Toolbar: Zoom in/out, change noodle type and more
- Noodle Customization: Per-graph noodle type selection via toolbar dropdown, plus global default settings
- Parent Graph Navigation: Hierarchical graph toolbar with breadcrumb navigation
- Node Dragging: Drag selected nodes using the drag handle below the toolbar
- Keep Open Setting: Auto-open last graph functionality
- JSON Settings Storage (v1.8.7): Settings stored in
Assets/Plugins/Unity Editor/xNode/as JSON files instead of EditorPrefs - Asset Processing (v1.9.0): Robust missing script handling with automatic cleanup
- Toolbar Positioning (v1.9.3): Fixed toolbar layout issues
- Port Attributes (v1.8.5, v1.8.8-v1.8.9): Extended port customization with hide, field, and tooltip overrides
Unity Package Manager
"com.jahnstargames.xnode": "https://github.com/JahnStar/JSG-xNode.git"Manual Installation Download and extract to your Assets folder.
Includes comprehensive implementations:
- DialogueSystem: Branching conversation system
- LogicToy: Boolean logic gates and circuit simulation
- MathGraph: Mathematical operations and formula evaluation
- RuntimeMathGraph: Dynamic graph creation and runtime evaluation
- StateMachine: Finite state machine for AI and game flow
- xNodeDialogueSystem: Advanced dialogue with character management
Import via Package Manager → JSG xNode → Samples.
[CreateAssetMenu(fileName = "New Graph", menuName = "Your Framework/Graph")]
public class YourGraph : NodeGraph { }[NodeWidth(200), NodeTint(40, 95, 65)]
[CreateNodeMenu("New/Calculator")]
public class CalculatorNode : Node {
[Input] public float valueA;
[Input] public float valueB;
[Output] public float result;
public Operation operation = Operation.Add;
public enum Operation { Add, Subtract, Multiply, Divide }
public override object GetValue(NodePort port) {
float a = GetInputValue<float>("valueA", valueA);
float b = GetInputValue<float>("valueB", valueB);
return operation switch {
Operation.Add => a + b,
Operation.Subtract => a - b,
Operation.Multiply => a * b,
Operation.Divide => b != 0 ? a / b : 0,
_ => 0
};
}
}[CustomNodeEditor(typeof(CalculatorNode))]
public class CalculatorNodeEditor : NodeEditor {
public override void OnBodyGUI() {
serializedObject.Update();
NodeEditorGUILayout.PropertyField(serializedObject.FindProperty("valueA"));
NodeEditorGUILayout.PropertyField(serializedObject.FindProperty("valueB"));
NodeEditorGUILayout.PropertyField(serializedObject.FindProperty("operation"));
NodeEditorGUILayout.PropertyField(serializedObject.FindProperty("result"));
serializedObject.ApplyModifiedProperties();
}
}[Input(backingValue = ShowBackingValue.Never, connectionType = ConnectionType.Multiple)]
public List<float> multipleInputs;
[Output(dynamicPortList = true)]
public float[] dynamicOutputs;
[Input(typeConstraint = TypeConstraint.Strict)]
public Transform strictTransform;
// Hide field in node but show in inspector
[NodeField(hideInNode: true), SerializeField, Header("Node")]
protected internal string ID;
[NodeField(hideInNode: true), SerializeField, TextArea(1, 9)]
protected internal string message;
// Custom tooltip and label override
[OverrideTooltip("GameObjectNode")]
[Input(ShowBackingValue.Always, ConnectionType.Override, overrideLabel = "Game Object")]
public GameObjectNode gameObjectNode;
// Empty port display
[Output(ShowBackingValue.Never, ConnectionType.Override, overrideLabel = " "), HeyHideInInspector]
public Node empty;public class DynamicNode : Node {
protected override void Init() {
base.Init();
AddDynamicInput(typeof(float), fieldName: "dynamicInput");
AddDynamicOutput(typeof(float), fieldName: "dynamicOutput");
}
}[CustomNodeGraphEditor(typeof(YourGraph), "YourFramework.Settings")]
public class YourGraphEditor : NodeGraphEditor {
public override string GetNodeMenuName(Type type) {
if (type.Namespace.Contains("YourFrameworkName")) return base.GetNodeMenuName(type);
else return null; // Hide other system nodes
}
public override Gradient GetNoodleGradient(NodePort output, NodePort input) {
var gradient = base.GetNoodleGradient(output, input);
var highlightColor = Color.yellow;
GradientColorKey[] colorKeys = gradient.colorKeys;
for (int i = 0; i < colorKeys.Length; i++) {
colorKeys[i].color = Color.Lerp(colorKeys[i].color, highlightColor, 0.5f);
}
gradient.SetKeys(colorKeys, gradient.alphaKeys);
return gradient;
}
}[NodeWidth(200), NodeTint(40, 95, 65)]
[CreateNodeMenu("New/Example/Behavior")]
public class BehaviorNode : Node {
[Input(hidePort = true)] private BaseWeightNode choice;
private List<BaseWeightNode> weights;
protected internal List<Node> states;
public enum Type { Utility, Choice }
[NodeEnum] public Type type;
}
[CustomNodeEditor(typeof(BehaviorNode))]
public class BehaviorNodeEditor : NodeEditor {
private SerializedObject serializedBehaviorNode;
private int type = -1;
public override void OnBodyGUI() {
serializedBehaviorNode ??= new SerializedObject(target);
serializedBehaviorNode.Update();
NodeEditorGUILayout.PropertyField(serializedObject.FindProperty("type"));
BehaviorNode behaviorNode = target as BehaviorNode;
if (type >= 0) {
if (type == (int)BehaviorNode.Type.Choice) {
NodeEditorGUILayout.PortField(behaviorNode.GetPort("choice"));
EditorGUILayout.Space();
}
else if (behaviorNode.HasPort("choice")) {
var choicePort = behaviorNode.GetInputPort("choice");
if (choicePort.IsConnected) choicePort.Disconnect(choicePort.Connection);
}
if (type == (int)BehaviorNode.Type.Utility) {
NodeEditorGUILayout.DynamicPortList("weights", typeof(BaseWeightNode),
serializedBehaviorNode, NodePort.IO.Input);
EditorGUILayout.Space();
}
else {
int i = 0;
while (behaviorNode.HasPort($"weights {i}")) {
behaviorNode.RemoveDynamicPort($"weights {i}");
i++;
}
}
}
NodeEditorGUILayout.DynamicPortList("states", typeof(Node), serializedBehaviorNode, NodePort.IO.Output);
serializedBehaviorNode.ApplyModifiedProperties();
type = (int)behaviorNode.type;
}
}For scene-specific graphs that reference GameObjects:
public class MySceneGraph : SceneGraph<CalculatorGraph> { }Access via Edit → Preferences → Node Editor:
- Grid Settings: Snap behavior, zoom limits, visual appearance
- System Settings: Auto-save, auto-open, keep-open functionality
- Node Settings: Colors, connection styles, port tooltips
- Type Colors: Custom color coding for data types
Settings are stored in Assets/Plugins/Unity Editor/xNode/[GraphType].Settings.json with project-specific configurations including custom color schemes and editor behavior preferences.
- BaseNode: Foundation class with serialization support
- Dynamic Ports: Runtime port creation and management
- Type Safety: Compile-time type checking for connections
- Custom Editors: Unity-style inspector integration
- Editor Only: All visual scripting overhead removed from builds
- Cached Reflection: Editor reflection cached for performance
- Minimal Runtime: Core functionality designed for production use
- Scalable: Optimized for complex node networks
MIT License
Copyright (c) 2017 Thor Brigsted and contributors
Copyright (c) 2024 Halil Emre Yıldız (Jahn Star Games)
- Original Repository: Siccity/xNode
- Documentation: xNode Wiki
- Package Repository: JahnStar/JSG-xNode
