Problem

Long Markdown files, specs included, are hard to move around in Preview. The only options are scrolling or searching for a heading's text, and nothing shows the shape of the document while you read.

Approach

The preview builds an outline from the headings it already renders and reuses their ids, so outline links always land on the rendered heading. The outline sits beside the document. It tracks the section you're reading with an observer instead of re-rendering on scroll, and it hides itself in narrow panes and in documents with fewer than two headings.

Changes

  • New outline panel next to rendered Markdown previews, nested by heading level. Clicking an entry scrolls the preview to that heading.
  • The current section is highlighted while you scroll, and the outline updates when the file changes.
  • A show/hide toggle, remembered per client. It starts hidden in narrow panes.
  • Headings are extracted in a pure function that skips frontmatter and fenced code and handles duplicate headings and skipped levels.
  • packages/resource-renderers/SPEC.md updated. New strings added to packages/locales/en.json.

Screenshots

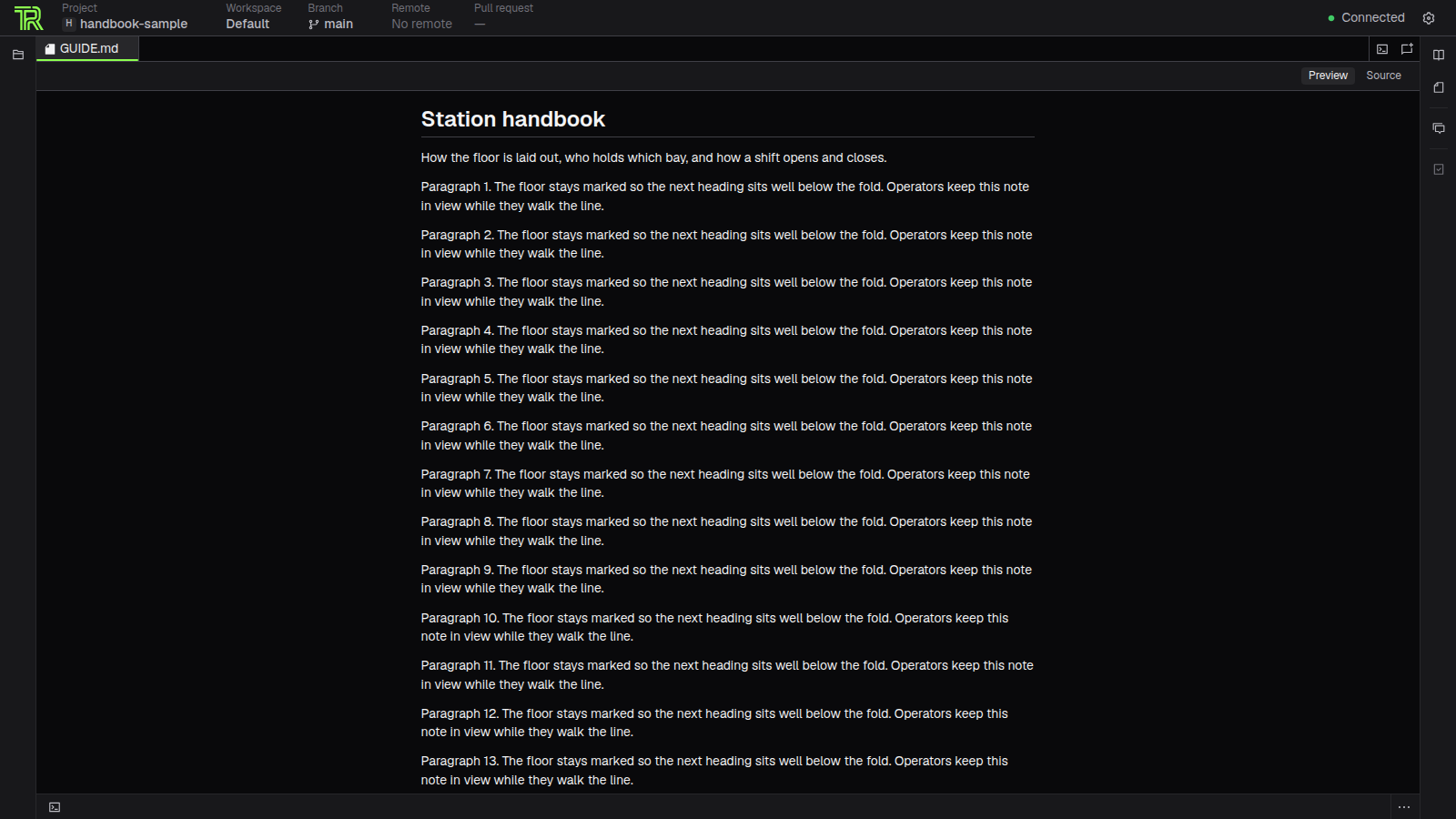

Before: the preview of a long Markdown file has no outline.

before

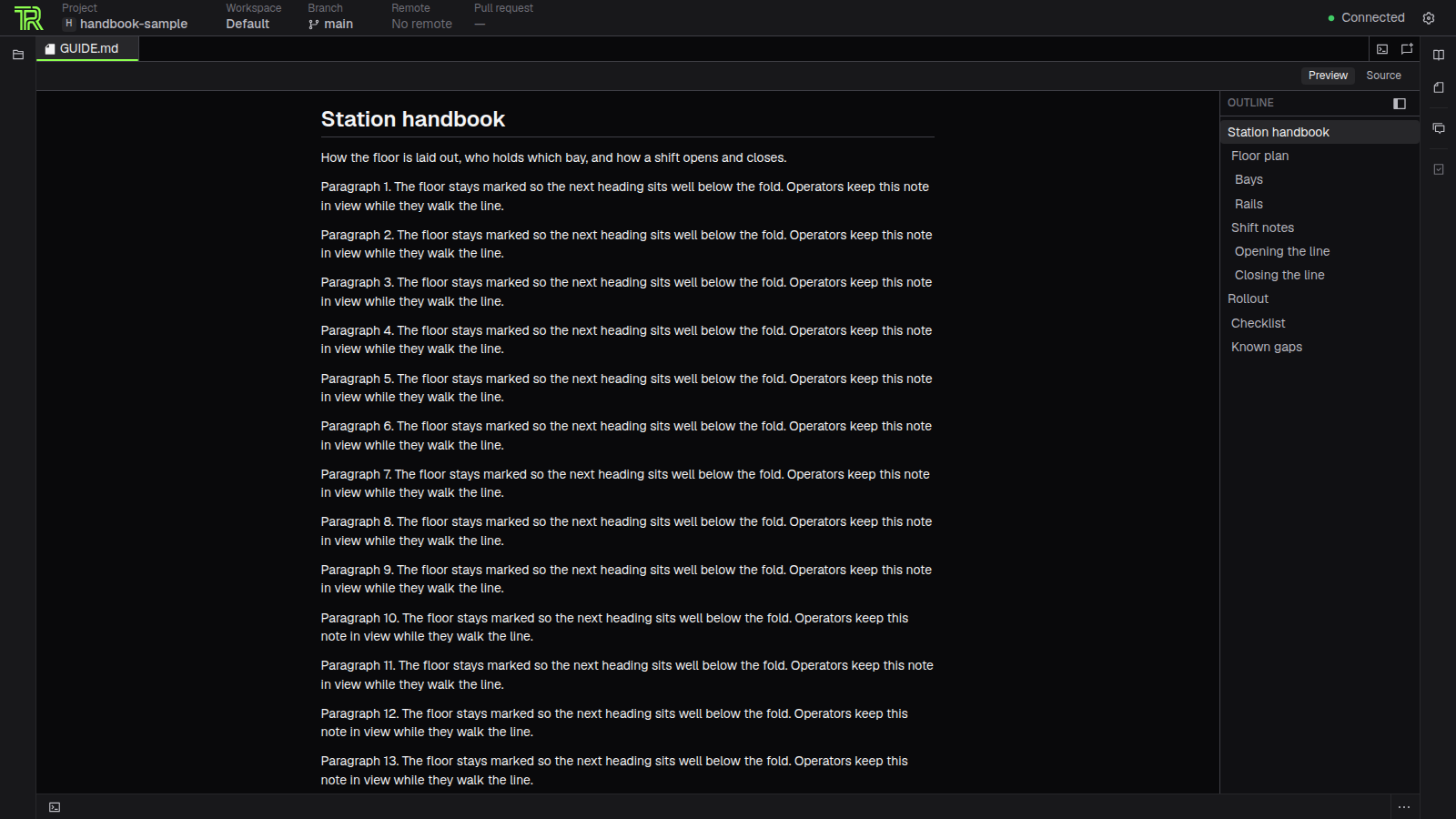

After: the heading outline sits beside the preview, with the current section highlighted.

after

Related issues

Closes #757

Checklist

  • Fast gates pass: bun run lint, bun run typecheck, bun run test
  • E2E suite passes for app-affecting changes (bun run e2e). The new e2e/markdown-outline.spec.ts passes. Locally, 4 topbar-review.spec.ts tests fail on a git push to the sample remote, which this change doesn't touch.
  • Before/after screenshots are included for frontend changes
  • Relevant SPEC.md / top-level specs updated to reflect any boundary, contract, or behavior change
  • I have read the Contributing guide and agree to the Code of Conduct

Demo

demo

jetbrains-air[bot]
jetbrains-air Bot approved these changes Oct 27, 2026
View reviewed changes

@jetbrains-air jetbrains-air Bot left a comment

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Approved — ready to merge.

Comment thread packages/resource-renderers/src/support/MarkdownPreview.tsx Outdated
Comment thread packages/resource-renderers/src/support/outlineHeadings.ts Outdated
Comment thread packages/resource-renderers/src/support/markdownLinks.tsx Outdated
@mvanhorn
feat(resource-renderers): add a heading outline to Markdown previews
d37a33c
Rendered Markdown previews list the document's headings in a collapsible
outline beside the document. Clicking an entry scrolls that heading in
the preview scroller, the current section is marked as the reader
scrolls, and the hide/show choice persists per client.
@mvanhorn
fix(resource-renderers): share one heading-id map across outline and …
5109076
…preview

Allocate heading ids once from a GFM parse so the outline, in-document
anchors, and spliced review segments land on the same elements. Unicode
headings get a nonempty slug; existing ASCII slugs stay unchanged.
@cursor
cursor Bot force-pushed the feat/markdown-outline branch from 0780441 to 5109076 Compare October 27, 2026 22:19
jetbrains-air[bot]
jetbrains-air Bot approved these changes Oct 27, 2026
View reviewed changes

@jetbrains-air jetbrains-air Bot left a comment

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Approved — ready to merge.

Comment thread packages/resource-renderers/src/support/MarkdownOutline.tsx Outdated
Comment thread packages/resource-renderers/src/support/outlineHeadings.ts
Comment thread packages/resource-renderers/src/support/outlineHeadings.ts Outdated
@CommanderTvis

Iaroslav (Rick) Postovalov (CommanderTvis) commented Oct 28, 2026 •
edited
Loading

Copy link
Copy Markdown
Contributor
  1. Chosen default position of the outline (to the left or the right) should be either justified or be configurable in settings.
  2. Outline also totally makes sense in code editor of .md file.

@mvanhorn

Matt Van Horn (mvanhorn) commented Oct 29, 2026

Copy link
Copy Markdown
Author

Thanks for looking at this.

  1. I put it on the right because that's where GitHub shows the outline for a rendered Markdown file, and it keeps the prose column anchored to the left edge the reader is already scanning. It's a weak default though, so a left/right option is reasonable. Would you rather have that as a setting in this PR, or keep this one to the preview and add the setting separately?

  2. Agreed that a .md file open in the code editor should get it too. The heading extraction (extractMarkdownOutline) is already independent of the renderer, so the editor side would mostly be wiring it to the editor's scroll position and reveal. That touches the editor surface rather than resource-renderers, so I'd suggest a separate PR for it, unless you want both here.

@CommanderTvis

Iaroslav (Rick) Postovalov (CommanderTvis) commented Oct 29, 2026

Copy link
Copy Markdown
Contributor

Thanks for looking at this.

  1. I put it on the right because that's where GitHub shows the outline for a rendered Markdown file, and it keeps the prose column anchored to the left edge the reader is already scanning. It's a weak default though, so a left/right option is reasonable. Would you rather have that as a setting in this PR, or keep this one to the preview and add the setting separately?
  2. Agreed that a .md file open in the code editor should get it too. The heading extraction (extractMarkdownOutline) is already independent of the renderer, so the editor side would mostly be wiring it to the editor's scroll position and reveal. That touches the editor surface rather than resource-renderers, so I'd suggest a separate PR for it, unless you want both here.

I think that a setting makes sense.

I'm not a team member, so can't guide you on flow of PRs.

@mvanhorn
fix(resource-renderers): outline review follow-ups and side setting
c755dd2
- Match spliced-segment heading ids by source line and reserve every
  document id, so a heading that only parses inside a segment (a split
  setext underline) cannot take a later heading's id.
- Reveal the active outline entry by adjusting only the list's own
  scrollTop, so an enclosing transcript never scrolls.
- Open closed <details> ancestors before scrolling to a selected heading.
- Cache heading elements and binary-search the active one at most once
  per animation frame instead of querying every heading on every scroll.
- Add a Left/Right "Markdown outline position" option to Appearance
  settings (client preference, defaults to right).
@mvanhorn

Matt Van Horn (mvanhorn) commented Oct 30, 2026

Copy link
Copy Markdown
Author

Added the setting in c755dd2. Appearance settings now has a "Markdown outline position" row with Left and Right; it defaults to Right and is stored as a client preference next to the outline's show/hide state. The editor-side outline for .md files I'll leave for a follow-up PR.
