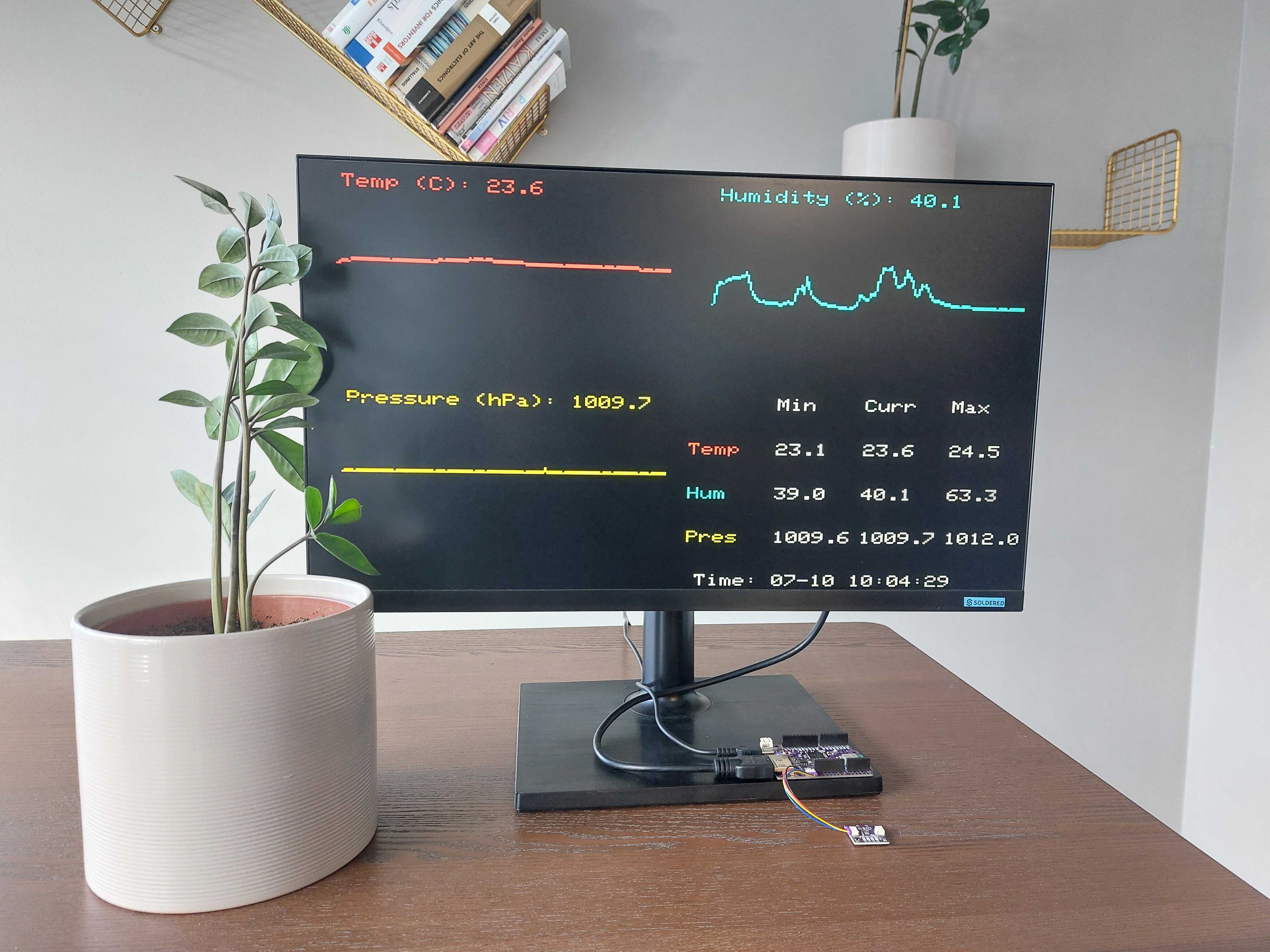

A project utilizing the DVI capabilities of the RP2350 board and the BME280 sensor to display weather data (temperature, pressure, humidity) on any display with an DVI port
 |
|---|
| RP2350 DVI Weather Station Project |
A detailed guide to this project can be found in the form of a blog post here
- Soldered NULA RP2350
- Temperature Sensor TMP117
- A WiFi connection
- If you haven't already, install Arduino IDE
- Download this repository and extract it
- Start the arduino sketch located in RP2350_DVI_Weather_Station_Project/RP2350_DVI_Weather_Station_Project.ino
- Click on the Boards Manager icon on the left and search for RaspberryPi Pico/RP2040/RP2350 by Earle F. Philhower, III and install it
- In the Select other board or menu... dropdown menu pick the Soldered Electronics NULA RP2350 and the serial port it is connected to
- Install all of the libraries mentioned under Software requirements
- Fill out the following variables with your credentials:
const char* ssid = "YOUR_SSID_HERE"; // WiFi SSID
const char* password = "YOUR_PASSWORD_HERE"; // WiFi password
const char* ntpServer1 = "pool.ntp.org"; // Primary NTP server
const char* ntpServer2 = "time.nist.gov"; // Secondary NTP server
const long gmtOffset_sec = 0; // GMT timezone offset
const int daylightOffset_sec = 0; // No daylight saving
const char* timezone = "EST-2";
- Run the sketch
- After uploading the code, connect the RP2350 board to an DVI display and you will ba able to view the live weather data on your screen!
