pybog: A Python Toolkit for Niagara BOG & DIST Files

bog_builder is a Python package for constructing Niagara Baja Object Graphs .bog files programmatically. The goal is for AI to assist human controls engineers in rapidly prototyping complex HVAC sequencing within wire sheet logic. If the software engineering community can prototype quickly, why shouldn’t the controls engineering community be able to do the same?

Python Project Setup

📦 PyPI project page: https://pypi.org/project/pybog/

The pybog project is fundamentally about constructing a typed knowledge graph of Niagara components. Every component, slot, and connection is represented as a node or edge in this graph, and the relationships are validated in real time using Pydantic models. This means that when a developer instantiates a component or links two slots together, pybog doesn’t just serialize arbitrary XML—it actively reasons over the structure being built, rejecting anything that doesn’t conform to Niagara’s strict typing rules. At the heart of this process is the SLOT_TYPE_MAPPING dictionary, which serves as an explicit ontology for the graph. It encodes the “ground truth” of what each slot expects—whether it’s a StatusNumeric, StatusBoolean, RelTime, FrozenEnum, or other Niagara type—and allows the BogFolderBuilder to act as a compiler rather than a blind assembler.

When you call builder.add_link(), the builder consults this mapping to determine the expected data type of the target slot and compares it against the source component’s declared output type from the COMPONENT_OUTPUT_TYPE table. If the two do not match, the builder queries the CONVERSION_MAP to locate the proper Niagara converter block, automatically inserts that into the graph, and rewires the edge so the knowledge graph remains valid. This automatic mediation between mismatched types is what transforms pybog from a simple code generator into a semantic builder, capable of maintaining type-safety across thousands of links. By embedding these rules, pybog prevents runtime issues such as ClassCastException errors and ensures that the generated .bog files can be trusted to compile and execute correctly inside Niagara Workbench.

In short, the knowledge graph that pybog produces is both structural and semantic: structural in that it captures the exact topology of components and links, and semantic in that every edge has been validated against an ontology of slot types and conversion rules. This layered validation gives developers confidence that their automatically generated graphs are not only well-formed but also meaningful in Niagara’s execution model.

The project has been tested on WSL (Windows Subsystem for Linux) using a Python 3.12.x environment with a standard virtual environment (venv) and pip, ensuring compatibility across modern development setups.

Installation Details

The package is available on PyPI and can be installed with:

pip install pybog

The project may get frequent updates so try:

pip install pybog --upgrade

Contribute to `pybog` via developing a local Python package

pip install .

To uninstall bog_builer if developing:

pip uninstall bog_builder

Make sure tests pass:

pytest

PRs welcome for examples and beyond. If mega overhauls are in a PR please give me a heads up prior.

Running Example Scripts with WSL

Details

Each example script can be executed directly in WSL to generate a .bog file and drop it straight into your Niagara Workbench JENEsys directory. All example Python files are also compiled into a text file and used for LLM context.

Run a specific example from project root directory Pass the Niagara Workbench path as the output directory (-o argument):

python examples/bool_latch_play_ground.py -o /mnt/c/Users/ben/Niagara4.11/JENEsys

This will create:

/mnt/c/Users/ben/Niagara4.11/JENEsys/bool_latch_play_ground.bog

Open Workbench Now you can import or open the generated .bog file inside your Niagara Workbench environment under the JENEsys station.

⚡ Tip: If you don’t want to type -o every time, you can edit each example script and change the default in its argparse:

parser.add_argument(
    "-o",
    "--output_dir",
    default="/mnt/c/Users/ben/Niagara4.11/JENEsys",
    help="Output directory for the .bog file."
)

Then you can just run:

python examples/bool_latch_play_ground.py

and it will always drop files directly into your Workbench directory for easy fast testing.

Bog Builder Python Example And Bog XML Graph Tutorial

How it works

This is a code snip from the examples\subtract_simple.py file with optional start_sub_folder folder structures.

builder = BogFolderBuilder("SubtractionLogic")

# --- Inputs ---
builder.add_numeric_writable(name="Input_A", default_value=100.0)
builder.add_numeric_writable(name="Input_B", default_value=40.0)

# --- Output ---
builder.add_numeric_writable(name="Difference")

builder.start_sub_folder("CalculationLogic")
builder.add_component(comp_type="kitControl:Subtract", name="Subtract")

builder.end_sub_folder()

builder.add_link("Input_A", "out", "Subtract", "inA")
builder.add_link("Input_B", "out", "Subtract", "inB")
builder.add_link("Subtract", "out", "Difference", "in16")

bog_filename = f"{script_filename}.bog"
output_path = os.path.join(args.output_dir, bog_filename)
os.makedirs(args.output_dir, exist_ok=True)
builder.save(output_path)
print(f"\nSuccessfully created Niagara .bog file at: {output_path}")

When run, it will create a .bog file that can be directly imported into Workbench. Behind the scenes, pybog automatically arranges the grid layout to keep it neat and human-readable. Placing logic inside subfolders is optional, but it’s a great way to keep your bog files organized and clean. And yes—AI can handle all of this for you, too 😉.

python examples/subtract_simple.py -o /mnt/c/Users/ben/Niagara4.11/JENEsys

Write Your Own `.bog` File in XML from scratch

The Python script operates by creating the entire XML structure of the Niagara .bog file as a single, multi-line text string. This string contains all the necessary tags to define each component, its properties, and the links between them. Finally, the script writes this complete XML string directly into a new file, which Niagara can then open and display as a standard wiresheet.

xml_content = '''<bajaObjectGraph version="4.0" reversibleEncodingKeySource="none" FIPSEnabled="false" reversibleEncodingValidator="[null.1]=">
  <p t="b:UnrestrictedFolder" m="b=baja">
    <p n="MyAdderLogic" t="b:Folder">

      <!-- Input1: Settable point with default value -->
      <p n="Input1" t="control:NumericWritable" h="1" m="control=control">
        <p n="out" f="s" t="b:StatusNumeric">
          <p n="value" v="6.0"/>
          <p n="status" v="0;activeLevel=e:17@control:PriorityLevel"/>
        </p>
        <p n="fallback" t="b:StatusNumeric">
          <p n="value" v="6.0"/>
        </p>
        <a n="emergencyOverride" f="h"/>
        <a n="emergencyAuto" f="h"/>
        <a n="override" f="ho"/>
        <a n="auto" f="ho"/>
        <p n="wsAnnotation" t="b:WsAnnotation" v="10,10,8"/>
      </p>

      <!-- Input2: Settable point with default value -->
      <p n="Input2" t="control:NumericWritable" h="2" m="control=control">
        <p n="out" f="s" t="b:StatusNumeric">
          <p n="value" v="4.0"/>
          <p n="status" v="0;activeLevel=e:17@control:PriorityLevel"/>
        </p>
        <p n="fallback" t="b:StatusNumeric">
          <p n="value" v="4.0"/>
        </p>
        <a n="emergencyOverride" f="h"/>
        <a n="emergencyAuto" f="h"/>
        <a n="override" f="ho"/>
        <a n="auto" f="ho"/>
        <p n="wsAnnotation" t="b:WsAnnotation" v="10,20,8"/>
      </p>

      <!-- Add: Logic block with verbose links -->
      <p n="Add" t="kitControl:Add" h="3" m="kitControl=kitControl">
        <p n="wsAnnotation" t="b:WsAnnotation" v="20,15,8"/>
        <p n="Link" t="b:Link">
          <p n="sourceOrd" v="h:1"/>
          <p n="relationId" v="n:dataLink"/>
          <p n="sourceSlotName" v="out"/>
          <p n="targetSlotName" v="inA"/>
        </p>
        <p n="Link1" t="b:Link">
          <p n="sourceOrd" v="h:2"/>
          <p n="relationId" v="n:dataLink"/>
          <p n="sourceSlotName" v="out"/>
          <p n="targetSlotName" v="inB"/>
        </p>
      </p>

      <!-- Sum: Read-only point with Set action explicitly hidden -->
      <p n="Sum" t="control:NumericWritable" h="4" m="control=control">
        <p n="out" f="h"/>
        <a n="emergencyOverride" f="h"/>
        <a n="emergencyAuto" f="h"/>
        <a n="override" f="ho"/>
        <a n="auto" f="ho"/>
        <a n="set" f="ho"/>
        <p n="wsAnnotation" t="b:WsAnnotation" v="30,15,8"/>
        <p n="Link" t="b:Link">
          <p n="sourceOrd" v="h:3"/>
          <p n="relationId" v="n:dataLink"/>
          <p n="sourceSlotName" v="out"/>
          <p n="targetSlotName" v="in16"/>
        </p>
      </p>

    </p>
  </p>
</bajaObjectGraph>'''

with open("PyMadeAddr.bog", "w", encoding="utf-8") as f:
    f.write(xml_content)

How it Works

Each <p> tag represents a Niagara component or a slot within a component (like out or fallback). Each <a> tag represents an action on that component, like set or override.
The f attribute (flags) is critical for controlling behavior. f="s" makes a slot settable, while f="h" or f="ho" hides a slot or action, which is how we create read-only points.
To set a default value, the out and fallback slots must be fully defined as complex properties containing nested <p n="value".../> and <p n="status".../> tags.
h="1", h="2", etc., are unique handles that links use to reference their source and target components.
wsAnnotation controls the block's position on the wiresheet. The coordinates are calculated using our Hierarchical Data Flow strategy to ensure a clean, grid-based layout.
The Add block's links use these handles to reference the out slots from Input1 and Input2 and connect them to its inA and inB inputs.

Using ChatGPT Agent Mode to Build `.bog` Files

How It Works

The workflow is entirely conversational: upload your project zip, describe the control sequence you need, and ChatGPT will do the rest. Be se sure to hit the plus sign to enable "Agent" mode in ChatGPT.

Upload the project zip In the chat interface, attach the pybog-develop.zip file (found in this repository). The agent will automatically extract the archive and inspect the code.
Describe your control logic Tell ChatGPT what sequence of operations you want to implement. For example:

“Create a central plant with a boiler and chiller. Enable heating when the outside air temperature is 50 °F or below, and cooling when it is 65 °F or above. Use variable speed pumps with a differential pressure setpoint of 20 PSI and include a 2 °F deadband for both heating and cooling.”
ChatGPT builds and tests the script
- The agent writes a Python script using the BogFolderBuilder API.
- It runs the script in a sandboxed environment and inspects the results.
- If it fails, the agent reads the traceback, fixes the code, and tries again.
- This iterate-and-repair loop continues until a valid .bog file is produced.
Download the result Once successful, ChatGPT presents a link to download the generated .bog file. You can import this file directly into Niagara Workbench for testing.

✅ Advantages

No API key required
No local Python setup
Faster prototyping directly within the conversation

📊 AI Agent

The following Mermaid diagram illustrates the high-level flow when using ChatGPT Agent Mode:

flowchart TD
  start([Start chat session]) --> upload[User uploads pybog zip]
  upload --> describe[User describes desired control logic]
  describe --> init[Agent extracts context files and builder]
  init --> iterate{{Is first attempt?}}

  iterate -- Yes --> gen[Agent generates Python script]
  iterate -- No  --> fix[Agent repairs script using previous code and traceback]

  gen --> write[Write script to sandbox]
  fix --> write

  write --> run[Execute script and build .bog]
  run --> success{Run ok and file created?}

  success -- Yes --> done[Present download link\nExit]
  success -- No  --> cap[Capture error/traceback]
  cap --> retry{Attempts < max allowed?}
  retry -- Yes --> incr[Update attempt count and context]
  incr --> iterate
  retry -- No --> fail[Report failure\nExit]

💡 Tips

Be specific when describing your control logic (setpoints, deadbands, number of pumps, etc.). The more detail you provide, the more accurate the generated .bog file will be.
Validate in Workbench: After downloading, import the .bog file into Niagara Workbench to review the wiresheet and adjust as needed.

With Agent Mode, you can rapidly prototype complex HVAC sequences without writing any code yourself. Just describe what you need, and let ChatGPT handle the heavy lifting.

Generate LLM Context Text Files

Details

The context directory contains documentation specifically formatted for use by the LLM agent. Running the generator will take all Python files in the examples directory and combine them into a set of LLM-friendly documentation files (see GoFast MCP docs for the format specification).

llms.txt — a lightweight sitemap listing each example file and its relative path.
llms-full.txt — a single, concatenated file with the complete source of every example, wrapped with clear delimiters (=== FILE: ... ===, === CODE START ===, === CODE END ===). ⚠️ Note: this file can be quite large and may exceed the context window of some LLMs. For this project the llms-full.txt can push upwords of 20,000 tokens.

Generate the docs with:

python src/bog_builder/generate_llm_docs.py --examples examples --output context

This ensures the agent has direct access to all available example scripts, either as a quick index (llms.txt) or full training context (llms-full.txt).

Traversing Baja Object Graphs

Details

TODO - Unfinished and need more research here especially Graph theory best practices and inefficient operations in pybog

Niagara represents the contents of a station as a directed graph of objects and properties. When working with the raw XML stored inside .bog and .dist archives you are effectively traversing this graph.

The graph is not strictly hierarchical: components can have links and references to other components across folders, and cycles may exist in more complex projects.

Best Practices

Parse once, traverse many. Extract the file.xml contents into an xml.etree.ElementTree and hold onto the root element. Re-parsing repeatedly is expensive.
Use breadth-first or depth-first search with a visited set. Each component element has a unique handle (h attribute). Track visited handles to avoid infinite loops.
Follow both containment and link relationships. Components are nested via <p h=...> elements, but logical connections are represented with b:Link child elements.
Build a handle → name map. Handles (e.g. s="h:123") are common in link definitions. Build a dictionary so you can resolve these references.
Be mindful of palettes. The type attribute encodes the palette and block name (e.g. kitControl:Add). Grouping by palette helps narrow searches or generate statistics.

Analyzer Class

The Analyzer in bog_builder.analyzer encapsulates these patterns. It:

Parses a .bog or .dist archive and extracts a flat JSON structure of components, properties, and links.
Builds a handle map so you can resolve references by handle.
Provides helpers to count kitControl blocks and generate bar/pie charts.

Example Usage

Analyse a .dist file, export JSON, and produce charts:

python -m bog_builder.analyzer analyze "/path/to/file.dist" \
  -o "/path/to/output.json" \
  --plots "/path/to/outputdir"

This will:

Save the JSON analysis into output.json.
Generate two PNGs in the outputdir folder:
- kitcontrol_counts_bar.png
- kitcontrol_counts_pie.png

Comparator Class

The BogComparator in bog_builder.analyzer provides a powerful diffing tool for your Niagara files. It:

Compares two .bog or .dist archives to find the differences between them.
Identifies components that have been added, removed, or modified.
Highlights specific changes to component properties and links, including changes to link types and converters.

Example Usage

Compare two .bog files to generate a diff report directly in your terminal:

python -m bog_builder.analyzer compare /path/to/version_A.bog /path/to/version_B.bog

This will print a detailed report listing:

Components that were added (+) or removed (-).
Modified components, detailing the exact property and link changes.

Example Output

Bar Chart (counts by block type)

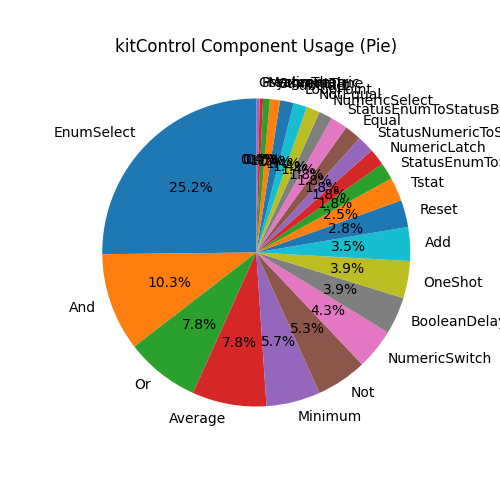

Pie Chart (distribution of block usage)

👉 With this, you now have both machine-readable JSON for reverse engineering and visual plots for quick insights into station complexity and palette usage.

Support Niagara4 kitControl Components

KitControl Widget Implementation Checklist

Reference logic building blocks from Niagara’s kitControl palette are documented in pdf/docKitControl.pdf.

Alarm

ChangeOfStateCountAlarmExt
ElapsedActiveTimeAlarmExt
LoopAlarmExt
AlarmCountToRelay

Constants

NumericConst
BooleanConst
EnumConst
StringConst

Conversion

Energy

HVAC

Latch

BooleanLatch
NumericLatch
EnumLatch
StringLatch

Logic

Math

Select

NumericSelect
BooleanSelect
EnumSelect
StringSelect

String

Timer

Util

pybog API Reference: BogFolderBuilder Methods

These methods create standard input/output points that are typically exposed on the wiresheet interface.

`add_numeric_writable`

Creates a standard settable numeric point (control:NumericWritable).

def add_numeric_writable(
    self,
    name: str,
    default_value: float = 0.0,
    precision: int = 2,
    units: str = "u:null"
) -> None:

name: The unique name for the component.
default_value: The initial fallback value for the point.
precision: The number of decimal places for display.
units: The Niagara units string (e.g., "u:degreeFahrenheit", "u:percent").

`add_boolean_writable`

Creates a standard settable boolean point (control:BooleanWritable).

def add_boolean_writable(
    self,
    name: str,
    default_value: bool = False
) -> None:

name: The unique name for the component.
default_value: The initial fallback value for the point (True or False).

`add_enum_writable`

Creates a standard settable enumeration point (control:EnumWritable).

def add_enum_writable(
    self,
    name: str,
    facets: str,
    default_value: str = "0"
) -> None:

name: The unique name for the component.
facets: The Niagara enumeration string (e.g., "range=E:{Off=0,On=1}").
default_value: The string representation of the default ordinal index (e.g., "0").

2. Enumeration Helpers

These high-level methods simplify working with EnumWritable and EnumConst components by managing range definitions centrally.

`define_enum_range`

Registers a reusable enumeration range mapping.

def define_enum_range(
    self,
    name: str,
    mapping: Dict[str, int]
) -> None:

name: A unique alias for the range (e.g., "Mode").
mapping: A dictionary mapping string tags to integer ordinals (e.g., {"Occupied": 0, "Unoccupied": 1}).

`add_enum_writable_by_name`

Adds an EnumWritable using a pre-defined range.

def add_enum_writable_by_name(
    self,
    component_name: str,
    enum_name: str,
    default_tag: str
) -> None:

component_name: The name for the new component.
enum_name: The alias of the range registered with define_enum_range().
default_tag: The string tag from the mapping to set as the default value (e.g., "Occupied").

`add_enum_const_by_name`

Adds an EnumConst using a pre-defined range.

def add_enum_const_by_name(
    self,
    component_name: str,
    enum_name: str,
    value_tag: str
) -> None:

component_name: The name for the new component.
enum_name: The alias of the range registered with define_enum_range().
value_tag: The string tag from the mapping to set as the constant's value.

3. Constant Components

Creates read-only constant value blocks.

Method Signature	Niagara Type	Description
`add_numeric_const(name: str, value: float)`	`kitControl:NumericConst`	Creates a constant numeric value.
`add_boolean_const(name: str, value: bool)`	`kitControl:BooleanConst`	Creates a constant boolean value.
`add_enum_const(name: str, facets: str, value: str)`	`kitControl:EnumConst`	Creates a constant enum value.

4. Math Components

Wrapper methods for mathematical operations from kitControl.

Method Signature	Niagara Type	Description
`add_add(name: str)`	`kitControl:Add`	Adds multiple numeric inputs.
`add_subtract(name: str)`	`kitControl:Subtract`	Subtracts input B from input A.
`add_multiply(name: str)`	`kitControl:Multiply`	Multiplies multiple numeric inputs.
`add_divide(name: str)`	`kitControl:Divide`	Divides input A by input B.
`add_average(name: str)`	`kitControl:Average`	Calculates the average of active inputs.
`add_minimum(name: str)`	`kitControl:Minimum`	Finds the minimum value among active inputs.
`add_maximum(name: str)`	`kitControl:Maximum`	Finds the maximum value among active inputs.
`add_reset(name: str)`	`kitControl:Reset`	Rescales a value from one range to another.
`add_sine_wave(name: str)`	`kitControl:SineWave`	Generates a sine wave output for testing.

5. Logic and Comparison Components

Wrapper methods for boolean logic and numeric comparisons from kitControl.

Method Signature	Niagara Type	Description
`add_and(name: str)`	`kitControl:And`	Boolean AND operation on multiple inputs.
`add_or(name: str)`	`kitControl:Or`	Boolean OR operation on multiple inputs.
`add_xor(name: str)`	`kitControl:Xor`	Boolean XOR operation on multiple inputs.
`add_not(name: str)`	`kitControl:Not`	Inverts a boolean signal.
`add_equal(name: str)`	`kitControl:Equal`	Outputs true if input A equals input B.
`add_not_equal(name: str)`	`kitControl:NotEqual`	Outputs true if input A does not equal input B.
`add_greater_than(name: str)`	`kitControl:GreaterThan`	Outputs true if input A > input B.
`add_greater_than_equal(name: str)`	`kitControl:GreaterThanEqual`	Outputs true if input A >= input B.
`add_less_than(name: str)`	`kitControl:LessThan`	Outputs true if input A < input B.
`add_less_than_equal(name: str)`	`kitControl:LessThanEqual`	Outputs true if input A <= input B.

6. Timer and Delay Components

Wrapper methods for time-based operations. Time arguments accept integers (milliseconds) or human-readable strings like "30s" or "5m".

`add_boolean_delay`

Delays a boolean signal on rise, fall, or both (kitControl:BooleanDelay).

def add_boolean_delay(
    self,
    name: str,
    on_delay: str | int | None = None,
    off_delay: str | int | None = None,
    properties: dict | None = None
) -> None:

`add_numeric_delay`

Applies a ramp or delay to a numeric value (kitControl:NumericDelay).

def add_numeric_delay(
    self,
    name: str,
    update_time: str | int | None = None,
    max_step_size: float | None = None,
    properties: dict | None = None
) -> None:

Other Timer Components

Method Signature	Niagara Type	Description
`add_multi_vibrator(name: str, period_ms: str \| int)`	`kitControl:MultiVibrator`	Creates a periodic boolean pulse (oscillator).
`add_one_shot(name: str)`	`kitControl:OneShot`	Emits a single true pulse when triggered.

7. HVAC and Sequencing Components

Wrappers for complex HVAC control blocks.

Method Signature	Niagara Type	Description
`add_lead_lag_cycles(name: str)`	`kitControl:LeadLagCycles`	Manages equipment rotation based on start cycles.
`add_lead_lag_runtime(name:str)`	`kitControl:LeadLagRuntime`	Manages equipment rotation based on accumulated runtime.
`add_loop_point(name: str)`	`kitControl:LoopPoint`	PID loop controller component.
`add_tstat(name: str)`	`kitControl:Tstat`	Thermostat logic block with setpoint and differential.

8. Latch and Switch Components

Components used for stateful logic and signal routing.

Method Signature	Niagara Type	Description
`add_boolean_latch(name: str)`	`kitControl:BooleanLatch`	Holds a boolean value based on a clock trigger.
`add_numeric_latch(name: str)`	`kitControl:NumericLatch`	Holds a numeric value based on a clock trigger.
`add_boolean_switch(name: str)`	`kitControl:BooleanSwitch`	Selects between `inTrue` and `inFalse` boolean inputs based on `inSwitch`.
`add_numeric_switch(name: str)`	`kitControl:NumericSwitch`	Selects between `inTrue` and `inFalse` numeric inputs based on `inSwitch`.

9. Utility Components

Miscellaneous utility blocks.

`add_counter`

Counts up or down based on boolean triggers (kitControl:Counter).

def add_counter(
    self,
    name: str,
    count_increment: float = 1.0,
    precision: int | None = None,
    properties: dict | None = None
) -> None:

`add_numeric_select`

Selects one numeric input from a list based on an integer index (kitControl:NumericSelect).

def add_numeric_select(
    self,
    name: str
) -> None:

10. Schedule Components

Wrappers for creating schedule objects.

Method Signature	Niagara Type	Description
`add_boolean_schedule(name: str, properties: dict)`	`sch:BooleanSchedule`	Creates a schedule for boolean events.
`add_numeric_schedule(name: str, properties: dict)`	`sch:NumericSchedule`	Creates a schedule for numeric setpoints.
`add_enum_schedule(name: str, properties: dict)`	`sch:EnumSchedule`	Creates a schedule for enumerated values.

🎥 Keep Up with Talk Shop With Ben on YouTube

License

MIT License — free for reuse with attribution. Any files generated here are provided strictly for research and educational purposes. All outputs are delivered “as-is,” with no guarantees of accuracy, safety, or fitness for any application. Neither the pybog project nor its creator accepts any responsibility or liability under any circumstances. By generating or using a .bog file produced by this project, you agree that you assume all risks and full responsibility for any outcomes—including, but not limited to, personal injury, loss of life, financial loss, equipment damage, or mechanical system failures. If you choose to use these files in any way, you do so entirely at your own risk.

Name		Name	Last commit message	Last commit date
Latest commit History 107 Commits
context		context
examples		examples
mcp_efforts		mcp_efforts
pdf		pdf
playgrounds		playgrounds
snips		snips
src/bog_builder		src/bog_builder
tests		tests
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
pybog_image.png		pybog_image.png
pyproject.toml		pyproject.toml
run_all_examples.py		run_all_examples.py
run_all_playgrounds.py		run_all_playgrounds.py

License

bbartling/pybog

Folders and files

Latest commit

History

Repository files navigation

pybog: A Python Toolkit for Niagara BOG & DIST Files

Python Project Setup

Contribute to pybog via developing a local Python package

Running Example Scripts with WSL

Bog Builder Python Example And Bog XML Graph Tutorial

Write Your Own .bog File in XML from scratch

How it Works

Using ChatGPT Agent Mode to Build .bog Files

✅ Advantages

📊 AI Agent

💡 Tips

Generate LLM Context Text Files

Traversing Baja Object Graphs

Best Practices

Example Usage

Comparator Class

Example Usage

Example Output

Support Niagara4 kitControl Components

Alarm

Constants

Conversion

Energy

HVAC

Latch

Logic

Math

Select

String

Timer

Util

add_numeric_writable

add_boolean_writable

add_enum_writable

2. Enumeration Helpers

define_enum_range

add_enum_writable_by_name

add_enum_const_by_name

3. Constant Components

4. Math Components

5. Logic and Comparison Components

6. Timer and Delay Components

add_boolean_delay

add_numeric_delay

Other Timer Components

7. HVAC and Sequencing Components

8. Latch and Switch Components

9. Utility Components

add_counter

add_numeric_select

10. Schedule Components

License

About

Topics

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Languages

Contribute to `pybog` via developing a local Python package

Write Your Own `.bog` File in XML from scratch

Using ChatGPT Agent Mode to Build `.bog` Files

`add_numeric_writable`

`add_boolean_writable`

`add_enum_writable`

`define_enum_range`

`add_enum_writable_by_name`

`add_enum_const_by_name`

`add_boolean_delay`

`add_numeric_delay`

`add_counter`

`add_numeric_select`

Packages
