Azure DevOps Create Pull Request Task

An easy way to automatically create a Pull Request from your Build or Release Pipeline.

You can create a Pull Request to an Azure DevOps (Repos) repository or to a GitHub repository.

Support multi target branch (PR from one source branch to many target branches) and Draft Pull Request.

Choose title, description, reviewers and more.

Prerequisites

• The task currently only works on Windows machines.

For Azure DevOps Repository:

• You need to enable the "Allow scripts to access the OAuth token":

  • If you use the classic editor, go to the Agent job options, scroll down and check the checkbox "Allow scripts to acess the OAuth token":



  • If you use yaml build, you need to map the variable in the task:

     env:
       System_AccessToken: $(System.AccessToken)

• You need to give permissions to the build user (in Microsoft hosted agnet is "Build Service (user-name)"):



For GitHub Repository:

• You need to create a GitHub service connection with Personal Access Token (PAT) - with repo permissions:



• To create the GitHub PAT go to https://github.com/settings/tokens/new



Usage

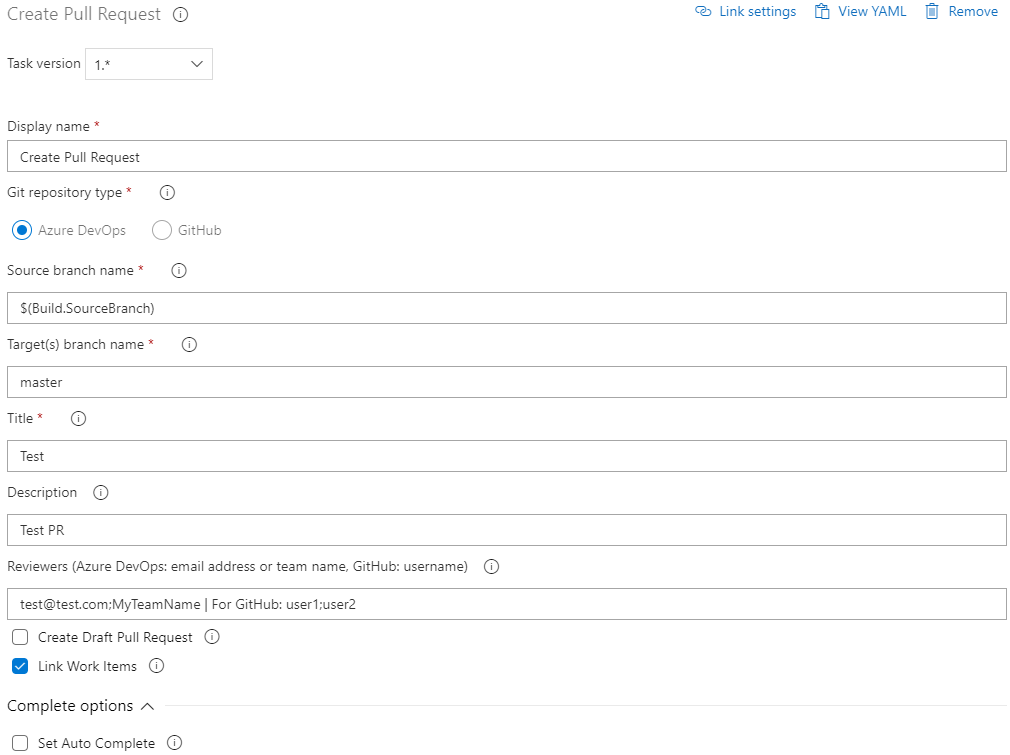

In the classic editor:

• Git repository type: Azure DevOps (Repos) or GitHub. When you choose GitHub you need to choose from the list the GitHub service connection (that use PAT authorization.)

• GitHub Connection (authorized with PAT): When you choose GitHub in Git repository type you need to specify here the GitHub service connection.

• Source branch name: The source branch that will be merged. The default value is the build source branch - $(Build.SourceBranch).

• Target branch name: The target branch name that the source branch will be merge to him. For example: master. Supports also multi target branch with *, for example: test/*.

• Title: The Pull Request title.

• Description: The Pull Request description. (Optional).

• Reviewers: The Pull Request reviewers (Optional) .
  For Azure DevOps - one or more email address or team name separated by semicolon. For example: [email protected];MyTeamName.
  For GitHub: one or more usernames separated by semicolon. For example: user1;user2.

• Create Draft Pull Request: If checekd the pull request will be a Draft Pull Request. (Default: false)
  For Azure DevOps: see here more info.
  For GitHub: see here more info.

• Link Work Items: If checked, all the work items that linked to the commits will be linked also to the PullRequest.

• Set Auto Complete: Only for Azure DevOps. If checekd the pull request will close once all branch policies are met.

  Complete options:

  • Merge Strateg: Specify the strategy used to merge the pull request during completion, see here more info.

    • Merge (No fast-forward) - noFastForward in yaml:

      A two-parent, no-fast-forward merge. The source branch is unchanged. This is the default behavior.

    • Squash commit - squash in yaml:

      Put all changes from the pull request into a single-parent commit.

    • Rebase and fast-forward - rebase in yaml:

      Rebase the source branch on top of the target branch HEAD commit, and fast-forward the target branch. The source branch is updated during the rebase operation.

    • Rebase and not fast-forward - rebaseMerge in yaml:

      Rebase the source branch on top of the target branch HEAD commit, and create a two-parent, no-fast-forward merge. The source branch is updated during the rebase operation.

  • Delete Sourch Branch: If true, the source branch of the pull request will be deleted after completion.
  • Commit Message: If set, this will be used as the commit message of the merge commit. if empty the default will be used.
  • Complete Associated Work Items: If true, we will attempt to transition any work items linked to the pull request into the next logical state (i.e. Active -> Resolved).

In yaml piepline:

- task: CreatePullRequest@1
  inputs:
    repoType: Azure DevOps / GitHub
    githubEndpoint: 'my-github' # When you choose GitHub in `repoType` you need to specify here the GitHub service connection
    sourceBranch: '$(Build.SourceBranch)'
    targetBranch: 'master'
    title: 'Test'
    description: 'Test' # Optional
    reviewers: For Azure DevOps: '[email protected];MyTeam'. For GitHub: `username;username2` # Optional
    isDraft: false / true (Default: false)
    linkWorkItems: false / true (Default: true)
    autoComplete: false / true (Default: false)
    mergeStrategy: 'noFastForward (default) / squash / rebase / rebaseMerge'
    deleteSourch:  false / true (Default: false) # Optional
    commitMessage: 'Test Comment' # Optional
    transitionWorkItems:  false / true (Default: false) # Optional
  env:
    System_AccessToken: $(System.AccessToken)

Known issue(s)

• In Azure DevOps Server (TFS) you can't use reviewers. still can create a PR without it. [Fixed in version 1.2.18]

Release Notes

1.2.48

• Link associated work items to the PR (for Azure DevOps)

1.2.36

• Add complete options like Merge Strategy and more in auto completion (for Azure DevOps).

1.2.30

• Support also a Team as reviewers (for Azure DevOps).

1.2.24

• Set Auto Complete the Pull Request (for Azure DevOps).

1.2.18

• Bug fix: Now you can add reviewers also in TFS 2018 and Azure DevOps Server 2019.

1.2.15

• Draft Pull Request option.

1.2.0

• Support also GitHub repositories!

1.0.31

• Multi target branch (For example: feature/*)

1.0.0

• First version.
