Lux Spiral Cosmos

Professional HDR Mathematical Animation Generator

Generate stunning 4K HDR cosmic visualizations using mathematical spiral dynamics with JIT-optimized performance.

---

🎬 Demo

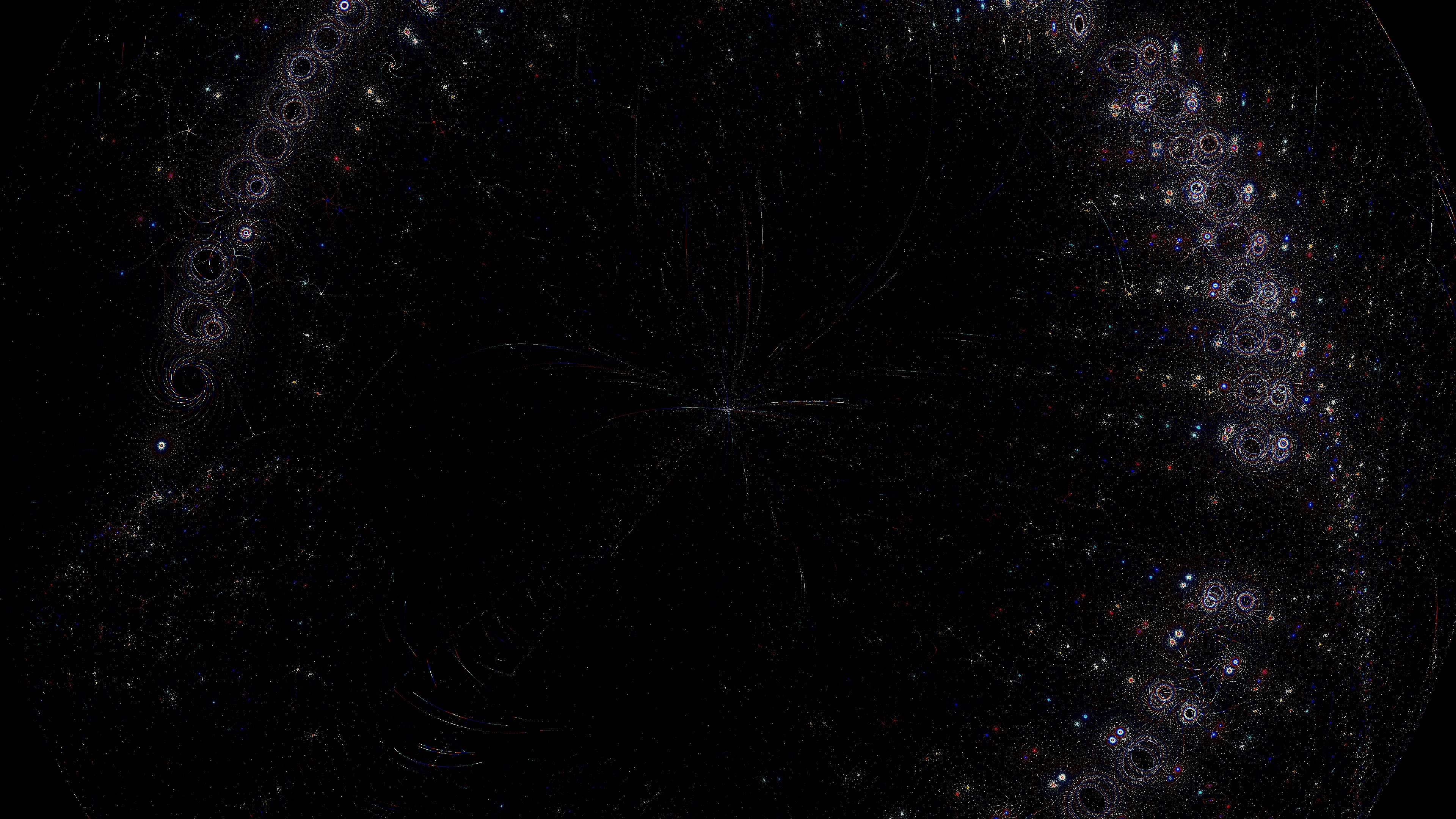

Sample Animation (HDR):

Click image to view HDR animation (works best on HDR-capable displays)

---

🌌 Overview

Lux Spiral Cosmos transforms mathematical equations into mesmerizing cosmic animations through:

• Mathematical Beauty: Coupled sine/cosine dynamical systems create organic spiral patterns
• HDR Excellence: True 16-bit Rec. 2020 color gamut with PQ tone mapping for 4000+ nit displays
• JIT Performance: Numba-optimized computation achieving 6M+ iterations/second (22x speedup)
• Professional Output: 4K resolution with FFmpeg-ready HDR video encoding

✨ Features

🎯 Core Capabilities

• 4K HDR Rendering: Native 3840×2160 with 16-bit TIFF output
• Mathematical Continuity: Frame-to-frame state persistence for smooth evolution
• Dynamic Spiral Sizing: Configurable pulsing effects and size modulation
• Preset System: JSON-based configurations for instant style switching
• Performance Monitoring: Detailed timing analysis and optimization metrics

🚀 Performance

• 22x Speed Improvement: JIT compilation reduces render time from 15s to 0.7s per frame
• Memory Efficient: ~100MB RAM usage during processing
• Scalable: From 1080p quick previews to 4K production renders

🎨 Visual Quality

• HDR Brilliance: 1000-4000 nits peak brightness for blazing cosmic cores
• Wide Color Gamut: Rec. 2020 color space for impossible-on-sRGB colors
• Deep Space Blacks: True 0.01 nit darkness for dramatic contrast
• Smooth Animation: Deterministic mathematical evolution between frames

---

🚀 Quick Start

Installation

git clone https://github.com/luxardolabs/lux-spiral-cosmos.git
cd lux-spiral-cosmos
pip install -r requirements.txt

Generate Your First Animation

# Use the default preset (matches original settings)
python cosmic_generator.py original_settings

# Try different presets
python cosmic_generator.py cosmic_intense
python cosmic_generator.py giant_spirals

# Enable debug mode for performance analysis
python cosmic_generator.py original_settings --debug

Create HDR Video

# The generator provides the exact FFmpeg command needed:
ffmpeg -r 24 -i frames_original_settings_20250602_183755/frame_%04d.tiff \
  -c:v libx265 -pix_fmt yuv420p10le \
  -color_primaries bt2020 -color_trc smpte2084 -colorspace bt2020nc \
  -x265-params 'hdr-opt=1:repeat-headers=1:colorprim=bt2020:transfer=smpte2084:colormatrix=bt2020nc' \
  hdr_animation_original_settings_20250602_183755.mp4

---

🎛️ Available Presets

Preset	Description	Characteristics
original_settings	Exact replica of development settings - DEFAULT	Balanced 4K HDR with subtle spiral pulsing
cosmic_gentle	Soft, meditative spirals	Gentle pulsing, lower brightness, peaceful
cosmic_intense	Dramatic HDR experience	4000 nits peak, rapid pulses, vivid colors
tiny_details	High-resolution intricate patterns	3000 density, fine spiral structures
giant_spirals	Massive spiral structures	Huge patterns, slow evolution, dramatic scale
rainbow_chaos	Fast color cycling chaos	Rapid rainbow shifts, chaotic dynamics

---

⚙️ Configuration

Customize Existing Presets

Edit config_presets.json to modify any preset:

{
  "presets": {
    "my_custom_preset": {
      "description": "My custom cosmic animation",
      "video": {
        "width": 3840, "height": 2160,
        "num_frames": 240, "fps": 24
      },
      "hdr": {
        "max_nits": 4000,
        "cosmic_core_boost": 5.0
      },
      "mathematical": {
        "n": 2000,
        "r_denominator": 125,
        "time_speed": 0.01,
        "scale_factor": 700
      },
      "spiral_pulse": {
        "size_min": 0.98, "size_max": 1.02,
        "pulse_speed": 2.0
      },
      "colors": {
        "speed": 2, "saturation": 1.5,
        "red_base": 0.3, "red_variation": 0.7,
        "green_base": 0.2, "green_variation": 0.8,
        "blue_base": 0.5, "blue_variation": 0.8
      }
    }
  }
}

Key Parameters

Mathematical Controls

• n: Point density (1000=balanced, 2000=detailed, 3000=ultra-fine)
• r_denominator: Spiral tightness (50=loose, 125=balanced, 300=tight)
• time_speed: Evolution rate (0.01=slow, 0.05=normal, 0.1=fast)
• scale_factor: Pattern size (400=small, 700=screen-filling, 1000=oversized)

Visual Effects

• spiral_pulse: Dynamic size modulation (0.5-3.0 range creates dramatic effects)
• max_nits: HDR peak brightness (1000=standard, 4000=premium displays)
• cosmic_core_boost: Brightness multiplier for pattern centers (1.0-10.0)

Color System

• saturation: Color intensity (1.0=natural, 2.0=vivid, 3.0=extreme)
• speed: Color cycling rate (1=slow, 5=fast, 10=strobing)
• Base/Variation: Fine-tune individual color channels (0.0-1.0 range)

---

🔬 Technical Details

Mathematical System

The core animation is generated by a coupled dynamical system:

u = sin(i + v) + sin(r * i + x)
v = cos(i + v) + cos(r * i + x)
x = u + t

Where:

• i, j: Iteration indices creating the base pattern
• r: Controls spiral frequency and tightness
• t: Time parameter providing smooth evolution
• State (x, u, v) carries forward between frames for continuity

HDR Pipeline

1. Mathematical Computation: JIT-compiled spiral generation
2. Color Space: sRGB → Rec. 2020 wide gamut conversion
3. HDR Mapping: PQ (Perceptual Quantizer) tone curve application
4. Output: 16-bit TIFF with proper HDR metadata

Performance Optimization

• Numba JIT: Machine code compilation for inner loops
• Type Specialization: Separate 8-bit/16-bit code paths
• Memory Efficiency: Minimal allocations, cache-friendly access
• Vectorization Ready: Architecture supports future SIMD optimization

---

📊 Performance Benchmarks

Configuration	Render Time	Iterations/sec	Speedup
Python (original)	14.7s/frame	277K	1x baseline
Numba JIT	0.97s/frame	6.1M	22x faster

Scaling Performance

• 1080p: ~0.25s per frame
• 4K: ~0.97s per frame
• n=1000: ~0.5s per frame
• n=3000: ~2.1s per frame

Total Animation Times:

• 240 frames @ 4K: 3.9 minutes (was 59 minutes)
• 120 frames @ 1080p: 30 seconds

---

🖥️ HDR Display Requirements

For Optimal Viewing

• HDR10-compatible display (1000+ nits peak brightness)
• Wide color gamut support (DCI-P3 minimum, Rec. 2020 preferred)
• HDR video player (VLC, MPV, or native TV apps)
• Proper HDMI 2.1 or DisplayPort 1.4+ connection

Tested Displays

• ✅ LG OLED C/G series (4000 nits peak)
• ✅ Samsung QLED (2000+ nits)
• ✅ Apple Pro Display XDR (1600 nits)
• ✅ Most modern HDR TVs

Fallback Support

• Standard displays show reduced dynamic range
• Still visually appealing but without HDR "wow" factor
• 8-bit PNG output available for standard workflows

---

🏗️ Project Structure

lux-spiral-cosmos/
├── cosmic_generator.py      # Main generator class and CLI
├── config_manager.py        # Configuration management
├── jit_core.py             # JIT-optimized mathematical core
├── config_presets.json     # Preset configurations
├── requirements.txt        # Python dependencies
├── README.md              # This documentation
└── __init__.py            # Package initialization

Module Overview

• cosmic_generator.py: Main orchestration, rendering pipeline, user interface
• config_manager.py: JSON loading, validation, preset management, FFmpeg commands
• jit_core.py: Numba-compiled mathematical functions for maximum performance
• config_presets.json: User-editable preset configurations

---

🛠️ Development

Running in Debug Mode

python cosmic_generator.py original_settings --debug

Provides detailed performance analysis:

=== FRAME 1 DEBUG METRICS ===
Total time: 0.973s
Setup time: 0.000s (0.0%)
Math time (JIT): 0.654s (67.2%)
Save time: 0.319s (32.8%)
Total iterations: 4,000,000
Pixels processed: 3,261,955
Iterations per second: 6,106,519
Time per iteration: 0.16 microseconds

Code Quality

• Type hints throughout for better IDE support
• Modular architecture for easy maintenance
• Professional logging with configurable verbosity
• Error handling with meaningful messages
• Performance monitoring built-in

Extending the System

The modular design makes it easy to:

• Add new mathematical systems in jit_core.py
• Create new presets in config_presets.json
• Modify HDR pipeline in cosmic_generator.py
• Add new output formats in config_manager.py

---

🎯 Use Cases

Creative Applications

• Digital Art: High-resolution prints and installations
• Video Production: HDR background elements and transitions
• Music Visualization: Sync mathematical parameters to audio
• Meditation Content: Slow, hypnotic spiral evolution

Technical Applications

• Algorithm Visualization: Demonstrate dynamical systems
• Performance Testing: Benchmark JIT compilation and HDR pipelines
• Display Calibration: Test HDR brightness and color accuracy
• Educational Content: Mathematical beauty made visible

Professional Workflows

• Motion Graphics: Export for After Effects/DaVinci Resolve
• Broadcast: HDR content for modern television
• Streaming: Netflix/YouTube HDR-ready content
• Gaming: Procedural background generation

---

🤝 Contributing

We welcome contributions! Areas of interest:

Performance

• GPU acceleration with CuPy/CUDA
• Multi-core CPU parallelization
• Memory usage optimization
• Alternative mathematical systems

Features

• Audio-reactive parameters
• Real-time preview mode
• Additional output formats
• Web-based configuration interface

Quality

• Unit tests for mathematical accuracy
• Automated performance benchmarking
• Cross-platform compatibility testing
• Documentation improvements

---

📄 License

AGPL-3.0 - see LICENSE file for details.

---

🏷️ Credits

Developed by Luxardo Labs

• Mathematical Foundation: Coupled sine/cosine dynamical systems
• HDR Implementation: Rec. 2020 + PQ tone mapping standards
• Performance: Numba JIT compilation techniques
• Inspiration: The infinite beauty of mathematical visualization

---

🔗 Links

• GitHub: luxardolabs/lux-spiral-cosmos
• Issues: Report bugs or request features
• Discussions: Community discussions

---

"Where mathematics meets cosmos, beauty emerges infinite." ✨
