Implement a dockerTools.buildLayeredImage target for obelisk projects by fabianhjr · Pull Request #697 · obsidiansystems/obelisk

fabianhjr · 2020-04-11T02:38:08Z

This is a rebase (solving conflicts) and squash of #512

I have:

Based work on latest develop branch
Looked for lint in my changes with hlint . (lint found code you did not write can be left alone)
Run the test suite: $(nix-build -A selftest --no-out-link)
(Optional) Run CI tests locally: nix-build release.nix -A build.x86_64-linux --no-out-link (or x86_64-darwin on macOS)

Changes from #512:

ChangeLog Next entry on merge
version became optional with default "latest" docker tag
moved docker build along deployment in readme
changed buildImage to buildLayeredImage for image efficiency/reusability.
use an optional internalPort argument

3noch · 2020-04-11T04:58:15Z

Awesome! We'll try to get this in!

fabianhjr · 2020-04-11T05:03:12Z

Hi @3noch, good to hear. Currently doing some testing with some of the changes made from the original merge request. :3

Though, it will take me some time to really get a feel about this. First time doing anything docker/k8s related. I can say with confidence that buildLayeredImage, nix and obelisk have been really interesting to learn about.

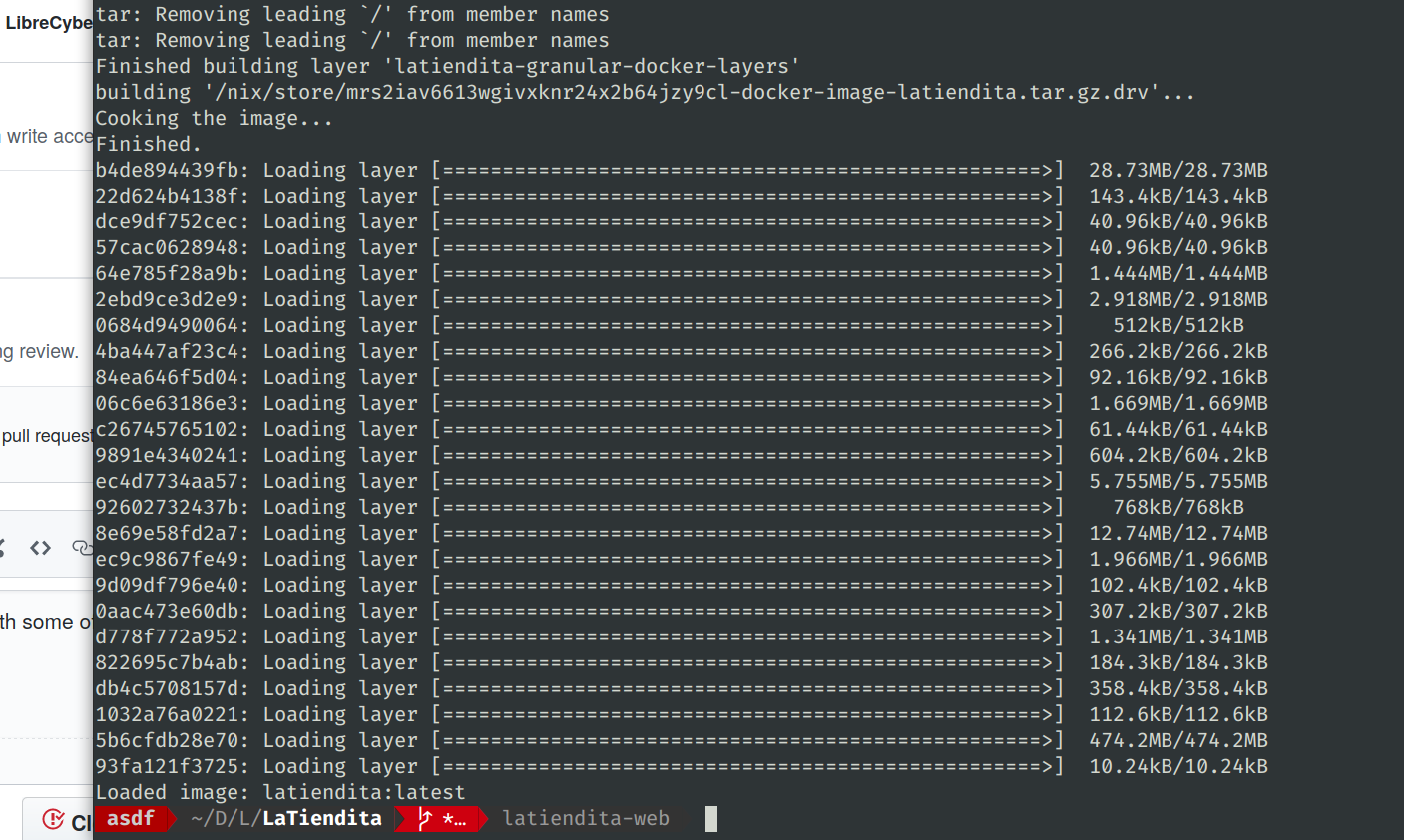

Anyways, here are the layers created for the project I am currently working on (https://gitlab.com/LibreCybernetics/LaTiendita/-/tree/1df40b5d8b984e55588b4ada1ec70db336cb40c5):

fabianhjr · 2020-04-11T05:07:53Z

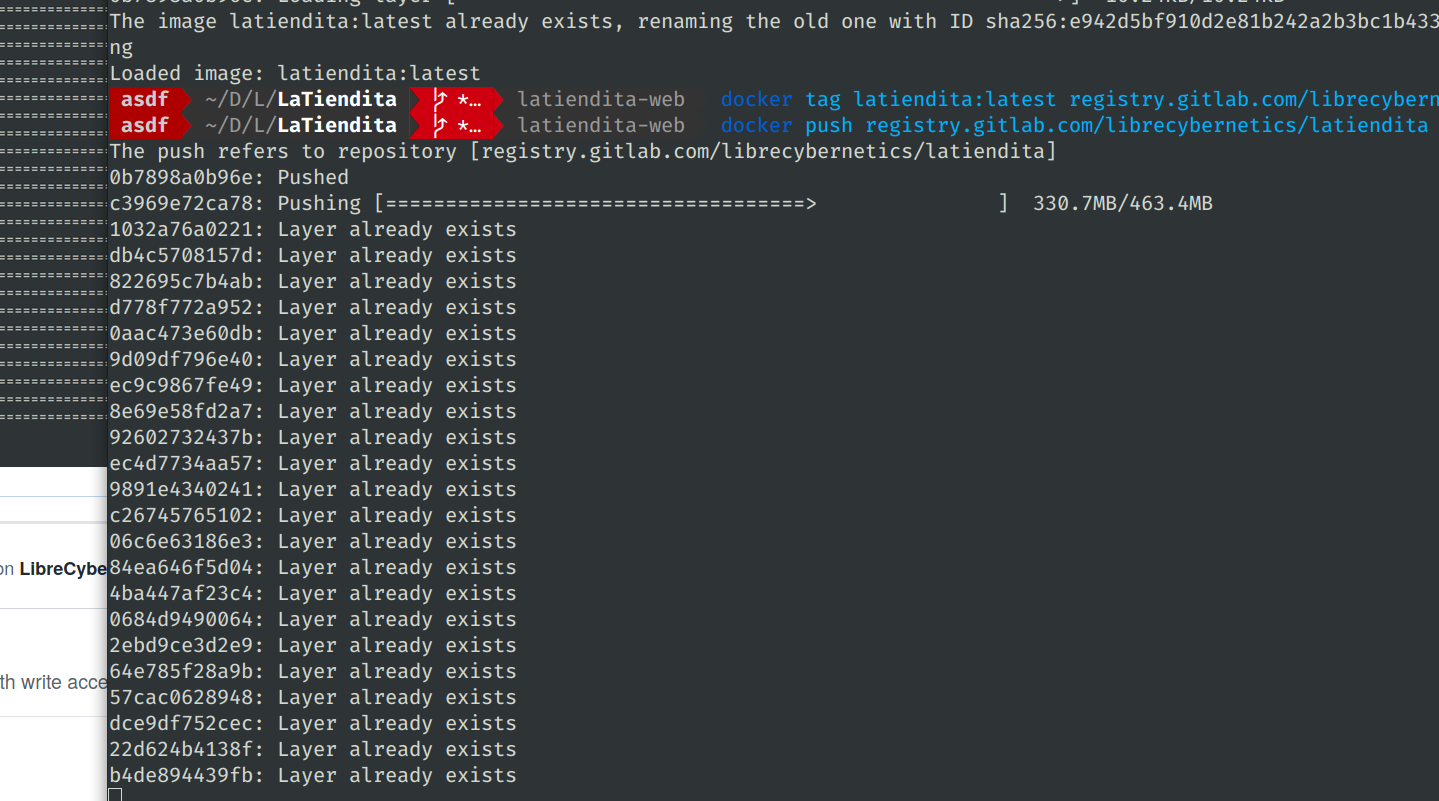

From initial tests buildImage created a single ~550 MB layer, buildLayeredImage created several images and a ~450 MB one.

fabianhjr · 2020-04-11T05:10:29Z

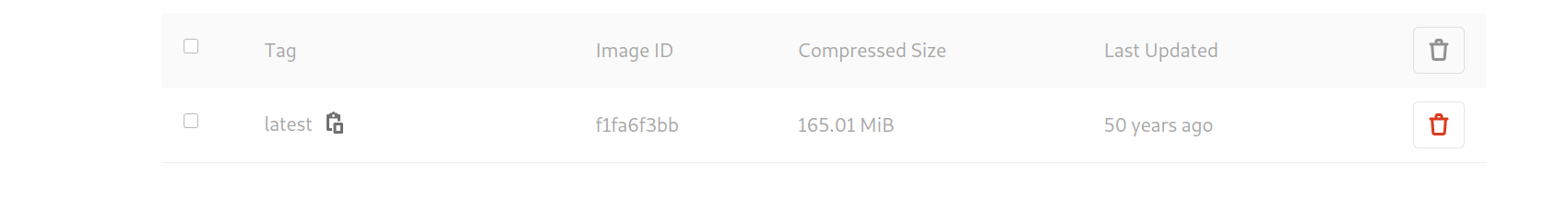

Interestingly enough, seems like the compressed image is closer to 160MB.

fabianhjr · 2020-04-11T06:56:53Z

And it is live :')

https://latiendita.coop

fabianhjr · 2020-04-13T18:06:01Z

Hi @3noch, on some further testing it seems like nix is packaging obelisk projects alongside thunks (like obelisk/obvelisk-oauth) as a single package and that stops some reusability from happening in the layered docker image.

I tried reading some of the nix expressions but wouldn't know how to separate them into packages. :C

3noch · 2020-04-13T18:22:00Z

Obelisk executables are statically linked. Perhaps that's what you're seeing? However, it's uncommon to layer multiple nix produced Docker images. It's more common, I think, to do your layering in nix and then produce a single Docker image at the end. Nix is better at sharing correctly than Docker.

fabianhjr · 2020-04-13T18:57:19Z

Nix is better at sharing correctly than Docker.

Yes, however this is for deployment from nix, Docker doesn't build the layers nix does as per documentation:

pkgs.dockerTools is a set of functions for creating and manipulating Docker images according to the Docker Image Specification v1.2.0 . Docker itself is not used to perform any of the operations done by these functions.

It would be really neat if for this small project the difference (the project itself) could get to about 50 MB or so. (Though I am not really sure how small or not the resulting single project layer can get)

EDIT: That way space usage in Container Registries could be reduced.

3noch · 2020-04-13T19:10:43Z

If the docker image size is the problem then what we probably need to do is figure out how to minimize our nix closure for obelisk projects. I've looked into this before and I suspect we can make the closure much smaller. That will produce smaller Docker images.

3noch · 2020-04-13T19:16:00Z

+          ))
+        ];
+        Expose = 8000;
+        Entrypoint = ["/var/lib/backend/backend"];


We shouldn't have hardcoded this. We'll probably have to move this nix into the mkObelisk module function so that one can get a docker image for obelisk without assuming default configuration.

Will look into it

If I understood this correctly then any changes on internalPort should propagete to the docker target. It should now not be hardcoded.

As per the entrypoint, if I understand this correctly that location is being grabbed from nix and symlinked in line 172

fabianhjr · 2020-04-13T19:29:05Z

I think the closure doesn't need to be smaller. Maybe dynamically building and having thunks be their own nixpkg would allow nix to split them into different docker layers. (However that is a future nice to have)

endgame · 2020-04-15T00:05:37Z

+To build with a custom configuration, Obelisk's default configuration can be imported and overriden in a `release.nix` file added to your top-level directory:
+
+```nix
+{ }:


A function from the empty set seems not useful. Is there something I'm missing with this?

Don't think so, not that I could find from #512

Documentation on this extra target can be found in nix's dockerTools documentation: https://nixos.org/nixpkgs/manual/#sec-pkgs-dockerTools Co-authored-by: Joe Betz <joebetz91@gmail.com> Co-authored-by: Fabián Heredia Montiel <fabianhjr@protonmail.com>

augyg · 2022-05-23T20:44:11Z

@fabianhjr is this still being worked on and wanted?

fabianhjr · 2022-05-23T23:18:59Z

I haven't used obelisk in a while, it is something I wanted though. Feel free to rebase and reopen a merge request.
