Description:

Steps to reproduce:

  • Apply “All” borders to B2:C3
  • Then merge C2:C3

Save the file, close the spreadsheet, and reopen it.

On import, the following happens:

  1. From data.borders, we call addBorder with:
    Zone: { top: 1, left: 2, bottom: 2, right: 2 } // C2:C3
    Border: { top, bottom, right, left (all thin black) }

    • This restores the stored borders for the merged range.
  2. Then we call addBorder for B2:B3 with:
    Zone: { top: 1, left: 1, bottom: 2, right: 1 } // B2:B3
    Border: { top, bottom, right, left, vertical, horizontal (all thin black) }

    • This reapplies the outer borders on B2:B3.
  3. Finally, import() calls addBordersToMerge(), which computes:
    Zone: { top: 1, left: 2, bottom: 2, right: 2 } // C2:C3
    Border: { top, bottom, right } // no left

    and then calls: this.addBorder(sheetId, zone, border, /* force = */ true);

The issue comes from how force was handled inside addBorder().

Because force = true for the merge, every entry in existingBorderSideToClear was set to true.
Thus, when the merged zone was adjacent to B2:B3, we cleared the border on the shared edge even if the new border did not define that side (in this case, there is no left on the merge). As a result, the right border of B2:B3 (the edge between B and C) disappeared after reopening.

We now compute existingBorderSideToClear so that it only depends on the sides actually defined on the new border.

Task: 5390397

review checklist

  • feature is organized in plugin, or UI components
  • support of duplicate sheet (deep copy)
  • in model/core: ranges are Range object, and can be adapted (adaptRanges)
  • in model/UI: ranges are strings (to show the user)
  • undo-able commands (uses this.history.update)
  • multiuser-able commands (has inverse commands and transformations where needed)
  • new/updated/removed commands are documented
  • exportable in excel
  • translations (_t("qmsdf %s", abc))
  • unit tested
  • clean commented code
  • track breaking changes
  • doc is rebuild (npm run doc)
  • status is correct in Odoo

- Apply “All” borders to B2:C3
- Then merge C2:C3

Save the file, close the spreadsheet, and reopen it.

On import, the following happens:

1. From `data.borders`, we call `addBorder` with:
   Zone:   { top: 1, left: 2, bottom: 2, right: 2 }   // C2:C3
   Border: { top, bottom, right, left (all thin black) }

   * This restores the stored borders for the merged range.

2. Then we call `addBorder` for B2:B3 with:
   Zone:   { top: 1, left: 1, bottom: 2, right: 1 }   // B2:B3
   Border: { top, bottom, right, left, vertical, horizontal (all thin black) }

   * This reapplies the outer borders on B2:B3.

3. Finally, `import()` calls `addBordersToMerge()`, which computes:
   Zone:   { top: 1, left: 2, bottom: 2, right: 2 }   // C2:C3
   Border: { top, bottom, right }                     // no left

   and then calls:
   `this.addBorder(sheetId, zone, border, /* force = */ true);`

The issue comes from how `force` was handled inside `addBorder()`.

Because `force = true` for the merge, *every* entry in
`existingBorderSideToClear` was set to `true`.
Thus, when the merged zone was adjacent to B2:B3, we cleared the border on the
shared edge even if the new border did not define that side (in this case,
there is no `left` on the merge). As a result, the right border of B2:B3 (the
edge between B and C) disappeared after reopening.

We now compute `existingBorderSideToClear` so that it only depends on the sides
actually defined on the new border.

Task: 5390397
@robodoo
Copy link
Collaborator

robodoo commented Dec 5, 2025

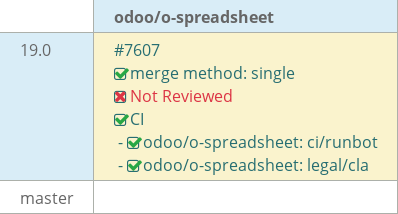

Pull request status dashboard
